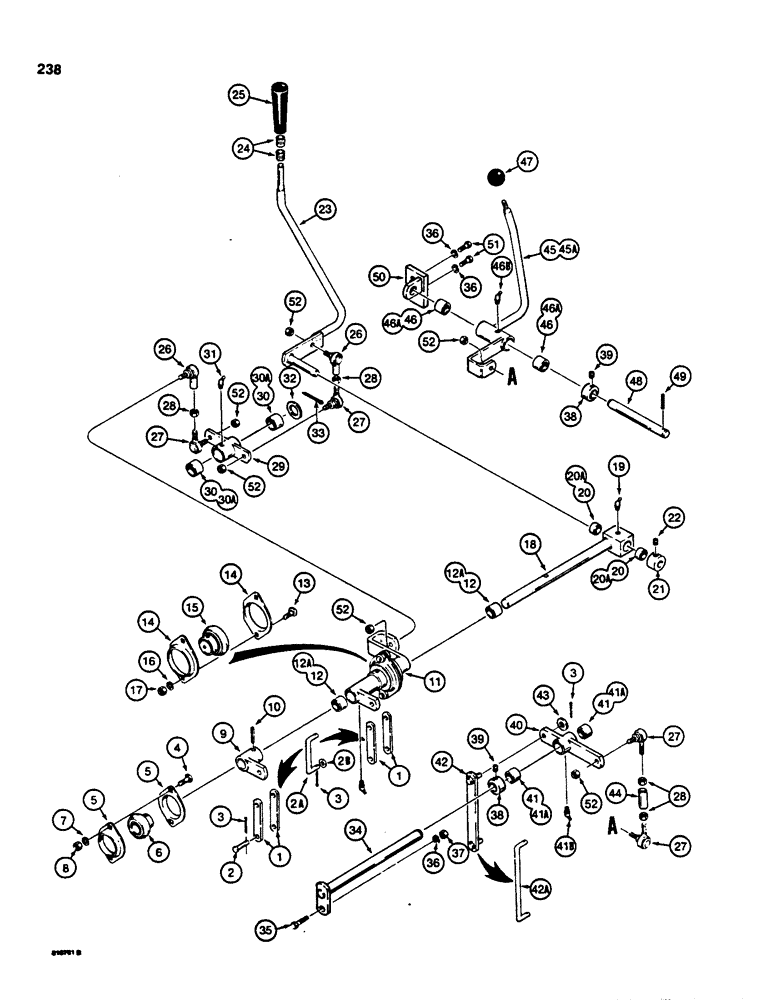

Запчасти Case 850C (238) - EQUIPMENT CONTROL VALVE AND LEVERS, VALVES ARE STAMPED WITH CASE PART NUMBERS (07) - HYDRAULIC SYSTEM

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see figure 248, 252 or 254

1шт.

1

REF

INSTRUCTION

LINK - straight, no longer used, replace R48761 link (ref 2A) and flat washers (ref 2B)

4шт.

2

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Used with item 1 links only, if used 3/8" x 1.060"

4шт.

2a

R48761

LINK

- bent, control valve

2шт.

2b

195-25

WASHER,3/8"

4шт.

3

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

4

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

5

F13360

FLANGE

- ball bearing

2шт.

6

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

- shaft

1шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

9

R27331

ELECTRICAL WIRE

BELLCRANK - links

1шт.

10

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

R34570

TUBE

BELLCRANK ASSEMBLY - without grease fitting, if used, Includes: Ref. 11 - 17

1шт.

R47714

TUBE ASSY.

BELLCRANK ASSEMBLY - with grease fitting, if used, Includes: Ref. 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - bellcrank shaft

1шт.

12

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- no longer used, order R47704 bushing

2шт.

12a

R47704

BRONZE BUSHING,0.753" ID x 1.003" OD x 0.50"

BUSHING - bronze

2шт.

12b

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type, R47714 bellcrank assembly only

1шт.

13

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

14

NSS

NOT SOLD SEPARAT

FLANGE - ball bearing

2шт.

15

NSS

NOT SOLD SEPARAT

BALL BEARING - tube

1шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

R34552

SHAFT

- bellcrank, inner, Includes: Ref. 19 - 20A

1шт.

19

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

20

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

- no longer used, order R45658 bushing

2шт.

20a

R45658

BRONZE BUSHING,0.627" ID x 0.815" OD x 0.750"

BUSHING - bronze

2шт.

21

D43620

COLLAR

- locking, control lever, uses 83-55 set screw, if used

1шт.

22

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

If used Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

21

D81756

COLLAR

ASSEMBLY - locking, includes 178-888 set screw, if used, Includes: Ref. 22

1шт.

22

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4" - 20 NC, if used

1шт.

23

R38721

LEVER

CONTROL LEVER - loader

1шт.

24

R38655

RING

BUSHING - knob, control lever

2шт.

25

R38654

KNOB

- control lever

1шт.

26

R36626

BALL

JOINT - female

2шт.

27

R36625

BALL

JOINT - male

4шт.

28

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

4шт.

29

R45653

ROCKER

LEVER - ball joints, with bushings, may replace lever with needle bearings on some models, Includes: Ref. 30 - 31

1шт.

30

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- no longer used, order R47704 bushing

2шт.

30a

R47704

BRONZE BUSHING,0.753" ID x 1.003" OD x 0.50"

BUSHING - bronze

2шт.

31

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

32

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

33

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

34

R47703

SHAFT

- bellcrank, outer

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

36

92-6

LOCK WASHER,3/8"

3шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

38

T10676

COLLAR

- locking, shaft retaining

2шт.

39

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

2шт.

40

R47706

LINK

LEVER - link, with grease fitting, replaces lever without grease fitting, Includes: Ref. 41 - 41B

1шт.

41

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- no longer used, order R47704 bushings

2шт.

41a

R47704

BRONZE BUSHING,0.753" ID x 1.003" OD x 0.50"

BUSHING - bronze, R34538 and R47706 levers

2шт.

41b

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type, R47706 lever

1шт.

42

REF

INSTRUCTION

LINK - straight, no longer used, replace with bent link, ref 42A

1шт.

42a

R48762

LINK

- bent

1шт.

43

195-25

WASHER,3/8"

2шт.

44

R27647

LINK

- threaded, ball joints

1шт.

45

R34546

LEVER

CONTROL LEVER - without grease fitting, no longer available, order R47707 control valve

1шт.

45a

R47707

LEVER

CONTROL LEVER - with grease fitting, Includes: Ref. 46 - 46B

1шт.

46

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- no longer used, order 47704 bushings

2шт.

46a

R47704

BRONZE BUSHING,0.753" ID x 1.003" OD x 0.50"

BUSHING - bronze, R34546 and 47707 control levers

2шт.

46b

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type, R47707 control lever

1шт.

47

70213

KNOB

- control lever

1шт.

48

R27648

SHAFT

- control lever

1шт.

49

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

50

R36889

BRACKET

- control lever mounting, bolts to hydraulic reservoir

1шт.

51

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

52

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

6шт.
