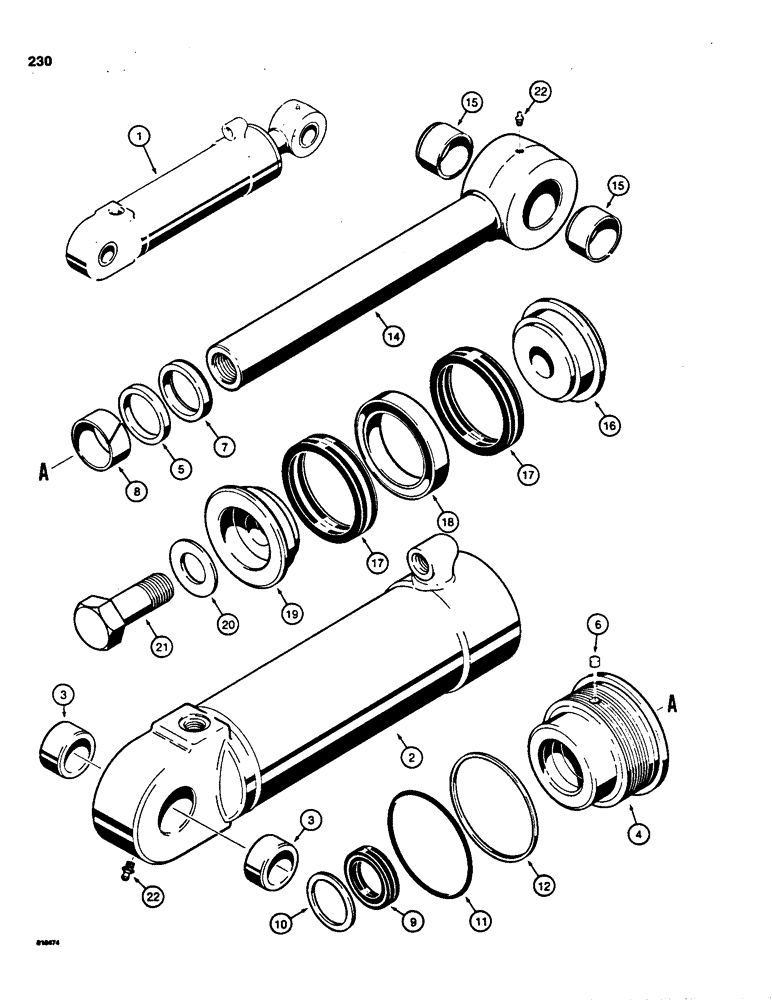

Запчасти Case 850C (230) - G103467 DOZER ANGLE CYLINDERS, ANGLE TILT DOZER MODELS (07) - HYDRAULIC SYSTEM

1

G103467

CYLINDER ASSY.

CYLINDER ASSEMBLY - angle, 4-1/2" (114 mm) ID x 8-5/8" (218 mm) stroke, Includes: Ref. 1 - 22

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G103488

TUBE,4.5" DIA x 18.03" L

- cylinder, Includes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube

2шт.

G104316

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

6

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of seal kit P/N G105525

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N G105525

1шт.

9

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G105525

1шт.

10

G102647

SEAL

- piston rod, narrow, used in addition to ref 9 in some glands

1шт.

Part of seal kit P/N G105525

1шт.

11

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105525

1шт.

12

G32284

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G105525

1шт.

14

G35487

ROD

- piston, 2" (51 mm) diameter, Includes: Ref. 15

1шт.

15

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

16

G33634

PISTON

- split, rod end

1шт.

17

D47205

PACKING

- cylinder

2шт.

Part of seal kit P/N G105525

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - wear

1шт.

19

D46931

PISTON

- split, bolt end

1шт.

20

G32351

WASHER

- hardened

1шт.

21

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105525

KIT

- seal, Includes: Refs. 7, 8, 9, 10, 11, 12 and 17, includes G34644 kit plus item 10 above

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.
