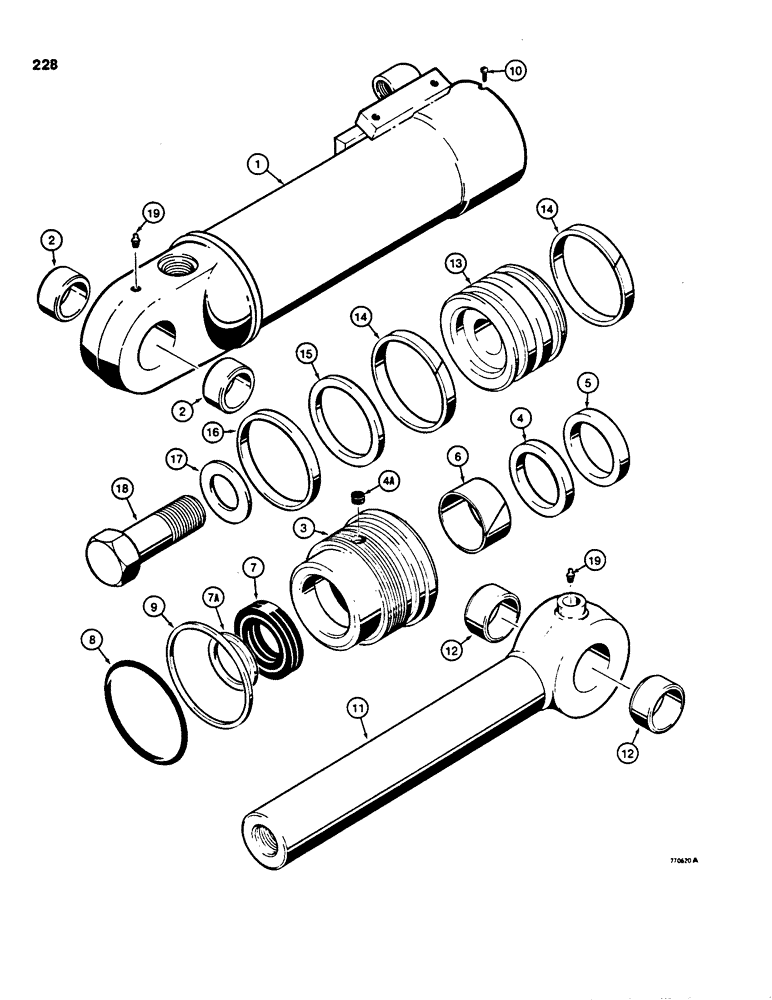

Запчасти Case 850C (228) - G101216 DOZER TILT CYLINDER, ANGLE TILT DOZER MODELS (07) - HYDRAULIC SYSTEM

G101216

CYLINDER

ASSEMBLY - tilt, 4" (102 mm) ID x 9-29/32" (252 mm) stroke, Includes: Ref. 1 - 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G35472

TUBE

- cylinder, Includes: Ref. 2

1шт.

2

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G104407

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of seal kit P/N G105545

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N G105545

1шт.

7

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G105545

1шт.

7a

G102647

SEAL

- piston rod, narrow, used in addition to ref 7 in some glands

1шт.

Part of seal kit P/N G105545

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105545

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of seal kit P/N G105545

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

11

G35478

ROD

- piston, 2" (51 mm) diameter, Includes: Ref. 12

1шт.

12

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

14

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of seal kit P/N G105545

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G105545

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G105545

1шт.

17

G32351

WASHER

- hardened

1шт.

18

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105545

SEAL

KIT - seal, Includes: Refs. 5, 6, 7, 7A, 8, 9, 14, 15 and 16, includes G102401 kit plus item 7A above

1шт.

G100778

SEAL

- rod, service option - severe heat or cold

1шт.
