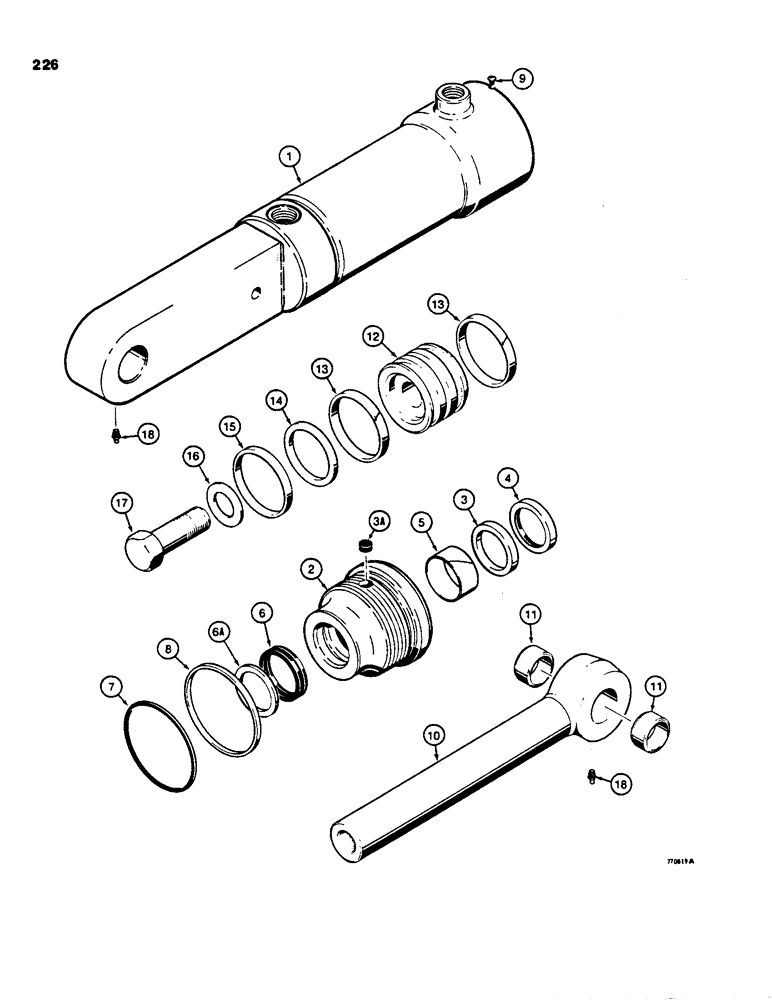

Запчасти Case 850C (226) - G101219 DOZER TILT CYLINDER, TILT DOZER MODELS (07) - HYDRAULIC SYSTEM

G101219

CYLINDER

ASSEMBLY - tilt, 4" (102 mm) ID x 5-3/4" (146 mm) stroke, Includes: Ref. 1 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G100623

CYLINDER,21.47" L

TUBE - cylinder

1шт.

G104936

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod

1шт.

Part of seal kit P/N G105552

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G105552

1шт.

6

D36970

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G105552

1шт.

6a

G103705

SEAL

- piston rod, narrow, used in addition to ref 6 in some glands

1шт.

Part of seal kit P/N G105552

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105552

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of seal kit P/N G105552

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/8", if used, not required when nylon plug is used

1шт.

10

G100628

ROD

- piston, 1-3/4" (44 mm) diameter, Includes: Ref. 11

1шт.

11

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

12

G100690

PISTON

- cylinder

1шт.

13

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of seal kit P/N G105552

1шт.

14

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G105552

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G105552

1шт.

16

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105552

GASKET KIT

KIT - seal, Includes: Refs. 4, 5, 6, 6A, 7, 8, 13, 14 and 15, includes G102408 kit plus item 6A above

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- rod, service option - severe heat or cold

1шт.
