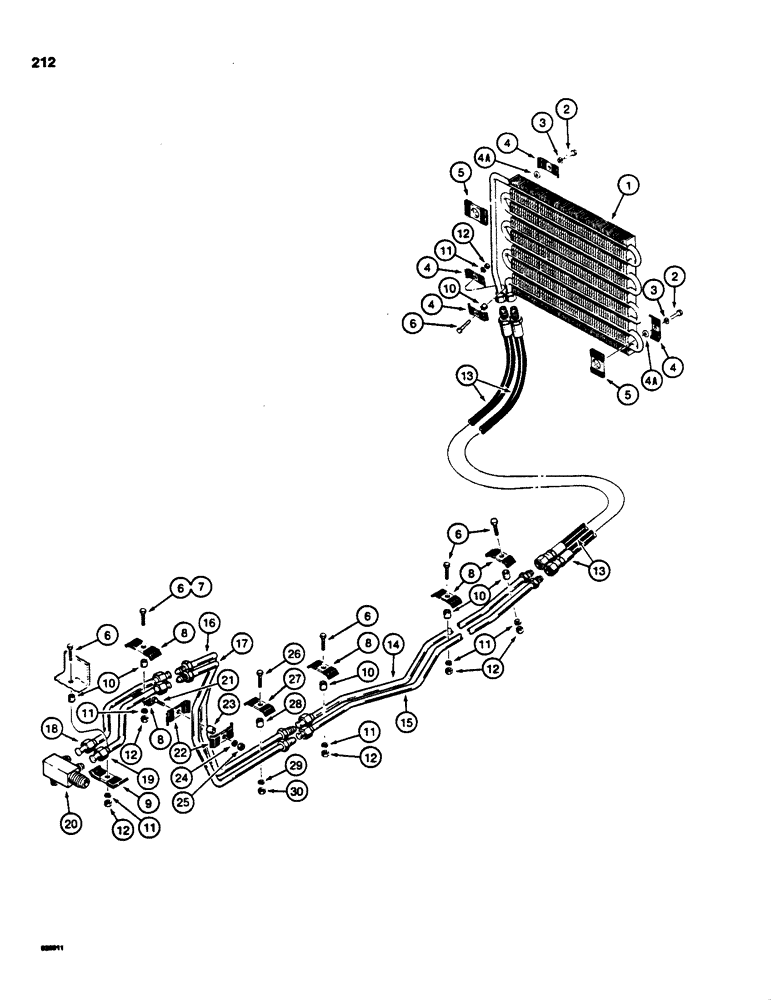

Запчасти Case 850C (212) - BACKHOE HYDRAULIC CIRCUIT, COOLING SYSTEM (07) - HYDRAULIC SYSTEM

1

R36986

COOLER

OIL COOLER - backhoe hydraulic circuit

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D41160

CLAMP

- tubes, at oil cooler

6шт.

4a

195-25

WASHER,3/8"

1шт.

5

R36989

CLAMP

- flat, at oil cooler

4шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5-6шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", replace with 13-628 bolt, ref 6

1шт.

8

R25782

CLAMP

- tubes

5шт.

9

R27809

CLAMP

- tubes

1шт.

10

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

13

R35321

HOSE

- 22" (559 mm) long

2шт.

14

R35175

TUBE,0.75" OD

- front, outer

1шт.

15

R35177

TUBE,0.75" OD

- front, inner

1шт.

16

R37401

TUBE,0.75" OD

- center, outer

1шт.

17

R37399

TUBE,0.75" OD

- center, inner

1шт.

18

R37405

TUBE

- rear, outer

1шт.

19

R37403

TUBE

- rear, inner

1шт.

20

R35237

MANIFOLD

- backhoe hydraulic circuit

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", if used

1шт.

22

R25782

CLAMP

- vertical tubes at transmission, if used

2шт.

23

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamps, if used

1шт.

24

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

1шт.

26

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

1шт.

27

R25782

CLAMP

- tubes, if used

1шт.

28

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp, if used

1шт.

29

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

1шт.
