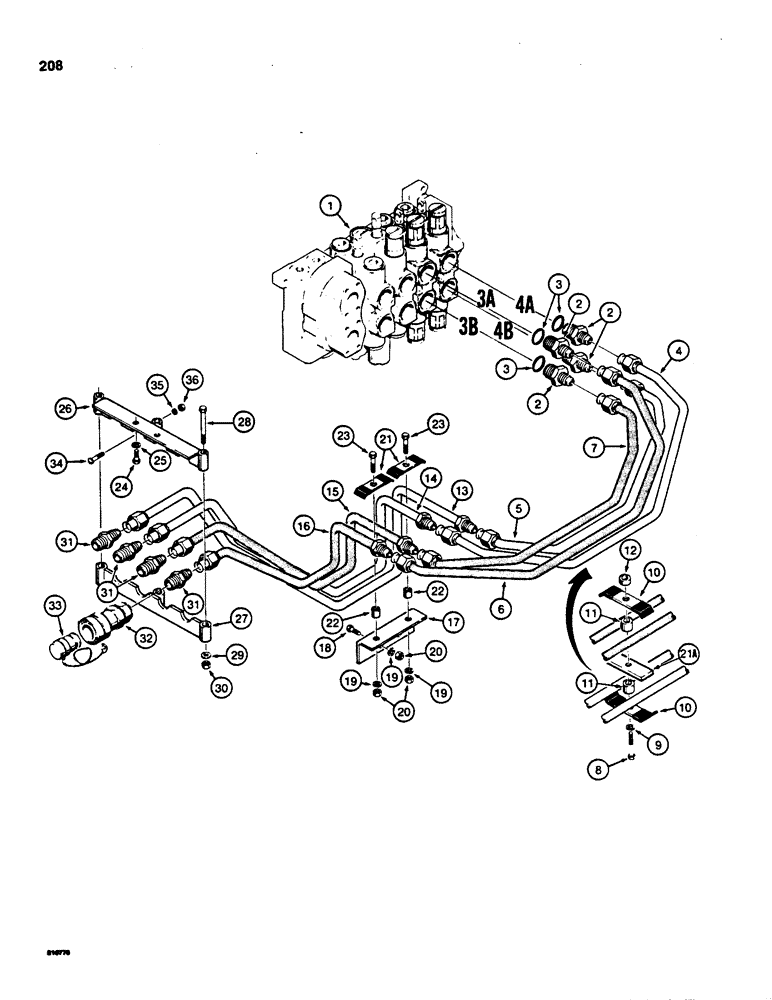

Запчасти Case 850C (208) - DUAL PULL BEHIND HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CONTROL VALVE - see figure 256 for correct valve
1шт.
2
218-5078
HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR - straight, Includes: Ref. 3
4шт.
3
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- connector
1шт.
4
R35536
TUBE - port 4A
1шт.
5
R35540
TUBE - port 4B
1шт.
6
R35528
TUBE - port 3A
1шт.
7
R35532
TUBE - port 3B
1шт.
8
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- hex head, 3/8" - 16 NC x 3-1/2"
1шт.
9
92-6
LOCK WASHER,3/8"
1шт.
10
R25782
CLAMP
- tubes
2шт.
11
F41806
BUSHING
SPACER - long
2шт.
12
B18072
X,3/8" Pipe x 3/8"
SPACER - short
1шт.
13
R35542
TUBE - 4B port
1шт.
14
R35538
TUBE - 4A port
1шт.
15
R35534
TUBE - 3B port
1шт.
16
R35530
TUBE - 3A port
1шт.
17
R36378
RING, SNAP
BRACKET - clamp mounting
1шт.
18
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
19
92-6
LOCK WASHER,3/8"
4шт.
20
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
4шт.
21
R25782
CLAMP
- tubes
2шт.
21a
R40279
PLATE - clamp mounting
1шт.
22
F41806
BUSHING
SPACER - clamp
2шт.
23
13-626
BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5
2шт.
24
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
25
92-6
LOCK WASHER,3/8"
2шт.
26
R26174
CLAMP
BRACKET - upper, tubes
1шт.
27
D39533
CLAMP
BRACKET - lower, tubes
1шт.
28
13-560
BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5
- hex head, 5/16" - 18 NC x 3-3/4"
3шт.
29
195-21
WASHER,5/16"
- flat, 5/16"
3шт.
30
131-4
LOCK NUT,5/16"-18, GB
NUT - hex, self-locking, 5/16" - 18 NC
3шт.
31
218-457
HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF
CONNECTOR - straight
4шт.
32
D52800
COUPLING, QUICK, FEM
COUPLING - quick disconnect, female, parts list figure 214
4шт.
33
D39924
PLUG
- dust
1шт.
35
192-6
LOCK WASHER,#8
WASHER, LOCK, #8
1шт.
36
129-6
NUT,#8-32
1шт.
Выбрано товаров: 37
