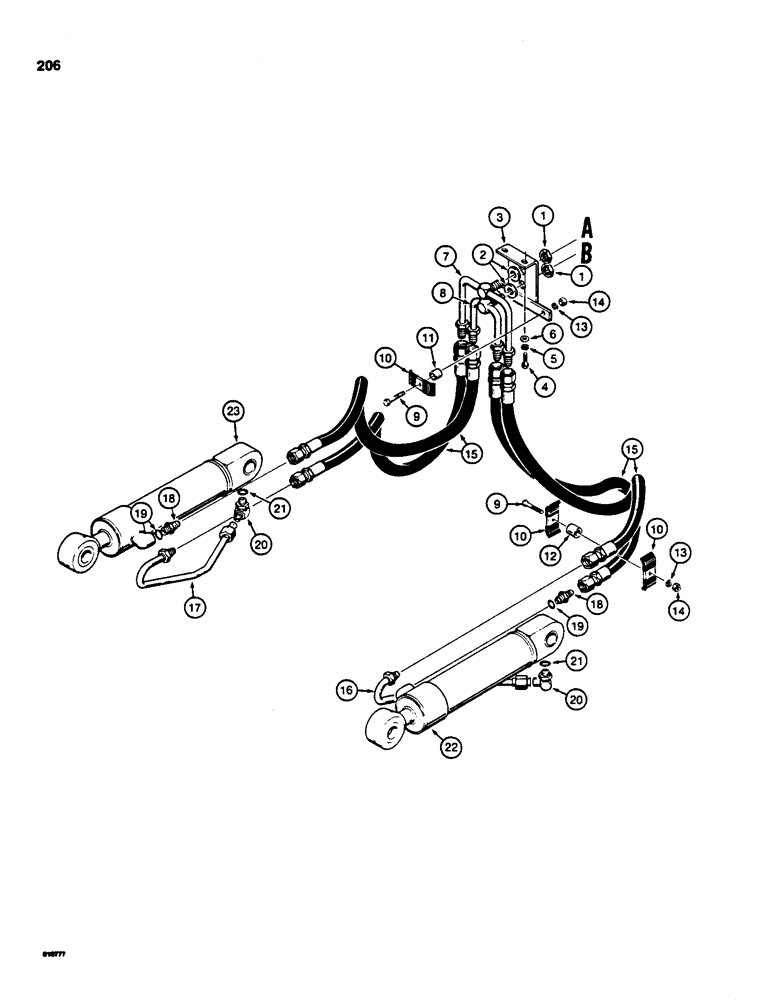

Запчасти Case 850C (206) - RIPPER HYDRAULIC CIRCUIT, REAR OF TRACTOR TO CYLINDERS (07) - HYDRAULIC SYSTEM

1

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

2

195-549

WASHER,7/8", SAE

- flat, 7/8", plated

2шт.

3

R35545

BRACKET

- manifold tubes

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

195-25

WASHER,3/8"

2шт.

7

R35549

TUBE,0.625" OD x 6.2, 3.75" L

- port A

1шт.

8

R46492

TUBE,0.625" OD x 4, 2.1" L

- port B, with restrictor fitting

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

10

D40236

CLAMP

-, Serial Range: tubes-bracket

6шт.

11

D76209

SPACER

- clamp, 5/8" (16 mm) long

2шт.

12

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- clamp, 7/8" (22 mm) long

2шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

15

F93300

HOSE

- at cylinders, 29" (737 mm) long

4шт.

16

R38348

TUBE,0.625" OD

- right-hand, closed end of cylinder

1шт.

17

R38350

TUBE,0.625" OD

- left-hand, closed end of cylinder

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

22

G101214

CYLINDER ASSY.

CYLINDER - right-hand, parts list figure 232

1шт.

23

G101215

CYLINDER ASSY.

CYLINDER - left-hand, parts list figure 232

1шт.
