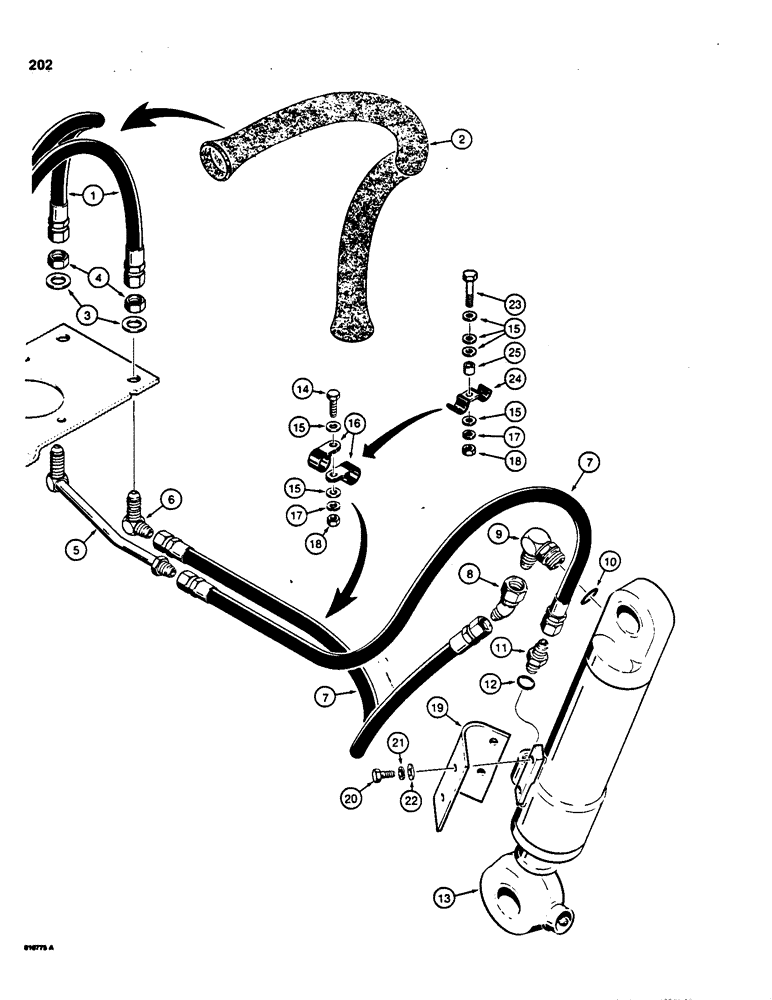

Запчасти Case 850C (202) - DOZER TILT HYDRAULIC CIRCUIT - GRILLE TO CYLINDER, *ANGLE TILT DOZER MODELS (07) - HYDRAULIC SYSTEM

1

R34010

HOSE

- to leveling beam, 50" (1270 mm) long

2шт.

2

R46372

SLEEVE

- nylon, angle and tilt hoses

1шт.

3

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

2шт.

4

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

5

R42439

TUBE,0.5" OD x 10.5, 0.9" L

- from leveling beam to rod end of tilt cylinder

1шт.

6

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

7

R42829

HOSE

- to tilt cylinder, 33" (838 mm) long

2шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, Incl. Ref 12 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

13

G101216

CYLINDER

- tilt, parts list figure 228

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with P-style clamps only Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

2-4шт.

16

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- P-style, hoses to cylinder, if used

2шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

19

R31935

GUARD

- tilt cylinder

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used with one-piece clamp only Hex, 3/8"-16 x 2", G5

1шт.

24

R15257

CLAMP

- one-piece, hoses to cylinder, if used

1шт.

25

D76208

SPACER

- used with R15257 one-piece clamp only

1шт.
