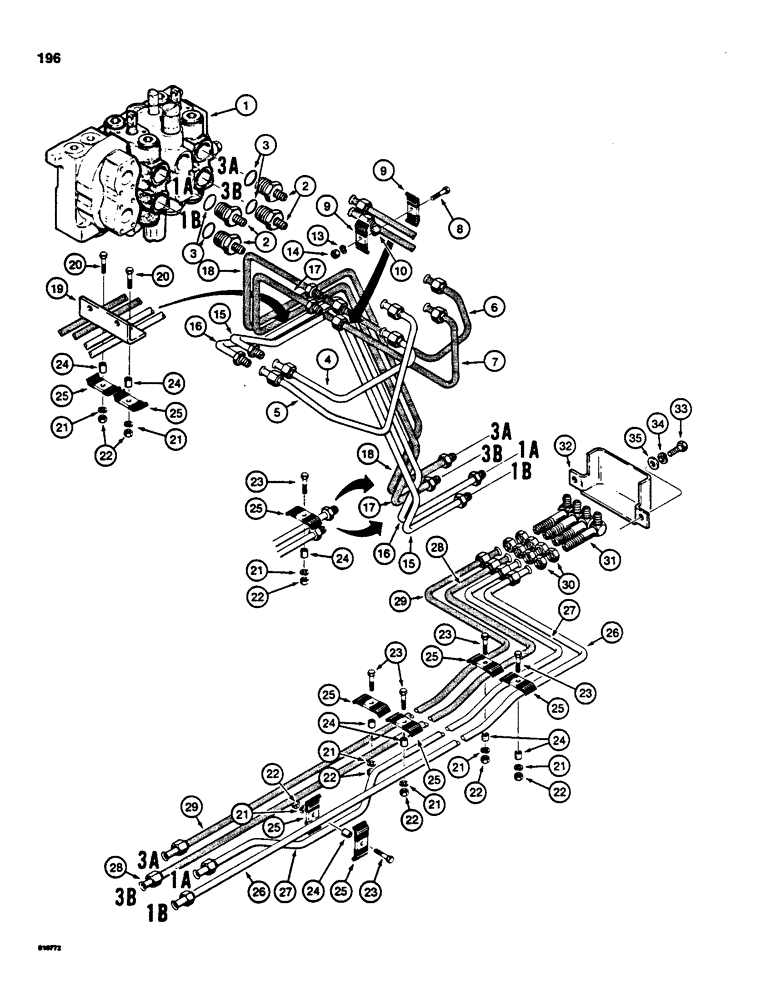

Запчасти Case 850C (196) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, TILT DOZER AND ANGLE TILT DOZER MODELS VALVE TO GRILLE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - see figures 252 thru 258 for correct valve

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Includes: Ref. 3

2-4шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

R34828

TUBE,12.7 mm OD x 395, 192 mm L

- B port, tilt circuit

1шт.

5

R46691

TUBE,12.7 mm OD

- A port, tilt circuit

1шт.

6

R34834

TUBE,0.5" OD

- A port, angle circuit

1шт.

7

R34832

TUBE,0.5" OD

- B port, angle circuit

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Tilt dozer models only Hex, 3/8"-16 x 2", G5

1шт.

8

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3", angle tilt dozer models only

1шт.

9

R25528

CLAMP

- angle tilt dozer models only

2шт.

10

C18330

SPACER

- angle tilt dozer models only

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

R34836

TUBE,0.5" OD

- B port, tilt circuit

1шт.

16

R34838

TUBE,0.5" OD

- A port, tilt circuit

1шт.

17

R34840

TUBE,0.5" OD

- B port, angle circuit

1шт.

18

R34842

TUBE,0.5" OD

- A port, angle circuit

1шт.

19

R35272

SUPPORT

BRACKET - tubes

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

5-9шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

5-9шт.

23

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

5-9шт.

24

C18330

SPACER

- clamp

5-9шт.

25

R25528

CLAMP

- tubes

4-7шт.

26

R34844

TUBE,0.5" OD

- B port, tilt circuit

1шт.

27

R34850

TUBE,0.5" OD

- A port, tilt circuit

1шт.

28

R34846

TUBE,0.5" OD

- B port, angle circuit

1шт.

29

R34848

TUBE,0.5" OD

- A port, angle circuit

1шт.

30

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4-8шт.

31

R33311

FITTING

ELBOW - 90 degree, bulkhead

2-4шт.

32

R34008

GUARD

- bulkheads

1шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used on tilt dozer models Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

33

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used on angle tilt dozer models Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

34

92-8

LOCK WASHER,1/2"

2шт.

35

195-33

WASHER,1/2"

- flat, 1/2"

2шт.
