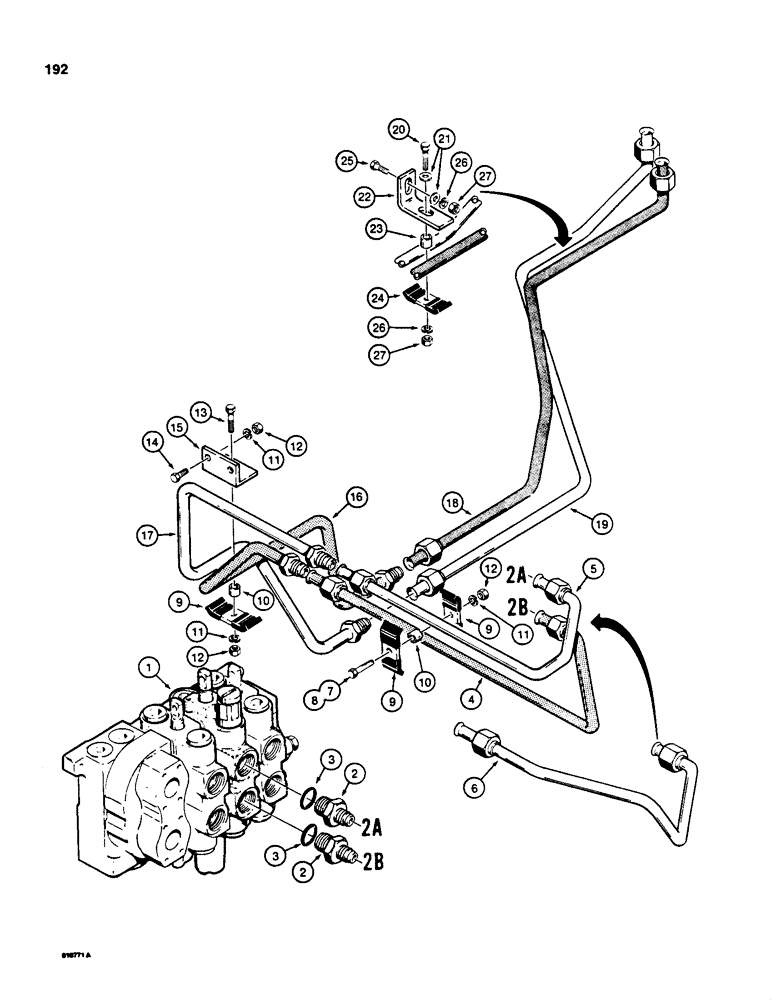

Запчасти Case 850C (192) - DOZER LIFT HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDER TUBES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - see figures 252 thru 258 for correct valve

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

R34982

TUBE,0.75" OD x 23.1, 6.91" L

- at control valve, lower, B port

1шт.

5

R34980

TUBE,0.75" OD

- at control valve, upper, A port, used on models without backhoe

1шт.

6

R45963

PIPE,0.75" OD

TUBE - at control valve, upper, A port, used on models with backhoe

1шт.

7

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3", used on angle tilt dozer models

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used on tilt dozer models Hex, 3/8"-16 x 2", G5

1шт.

9

D40236

CLAMP

- tubes

3шт.

10

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamps

2шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

R34219

SUPPORT

BRACKET - clamp mounting

1шт.

16

R34977

TUBE,0.75" OD

- lower, B port

1шт.

17

R39884

TUBE,0.75" OD

- upper, A port

1шт.

18

R43685

TUBE,.75" OD

- B port

1шт.

For completion of the dozer lift hydraulic circuit, see figure 194.

1шт.

19

R43687

TUBE,.75" OD

- A port

1шт.

For completion of the dozer lift hydraulic circuit, see figure 194.

1шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

21

195-25

WASHER,3/8"

2шт.

22

R34970

SUPPORT

BRACKET - clamp mounting

1шт.

23

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

1шт.

24

D40236

CLAMP

- tubes

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.
