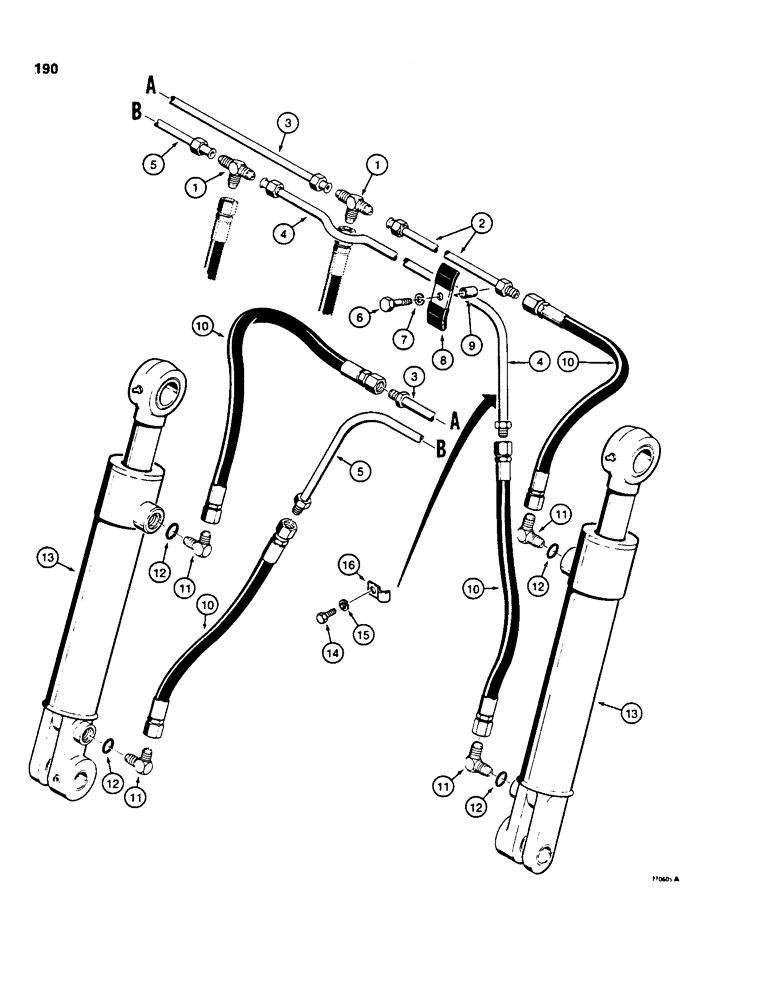

Запчасти Case 850C (190) - CLAM BUCKET HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- male

2шт.

2

R35431

TUBE,0.625" OD x 19.9" L

- right-hand upper

1шт.

3

R35429

TUBE,0.625" OD x 24.3" L

- left-hand upper

1шт.

4

R35435

TUBE,0.625" OD

- right-hand lower

1шт.

5

R35433

TUBE,0.625" OD x 13.02, 14.54" L

- left-hand lower

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

D40236

CLAMP

- tubes

3шт.

9

F41806

BUSHING

SPACER - clamp

3шт.

10

D64000

HOSE

- 20" (528 mm) long

4шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 12

4шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

13

G101211

CYLINDER BLOCK

CYLINDER - parts list figure 220

2шт.

14

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

R41366

CLIP

- tube retaining

2шт.
