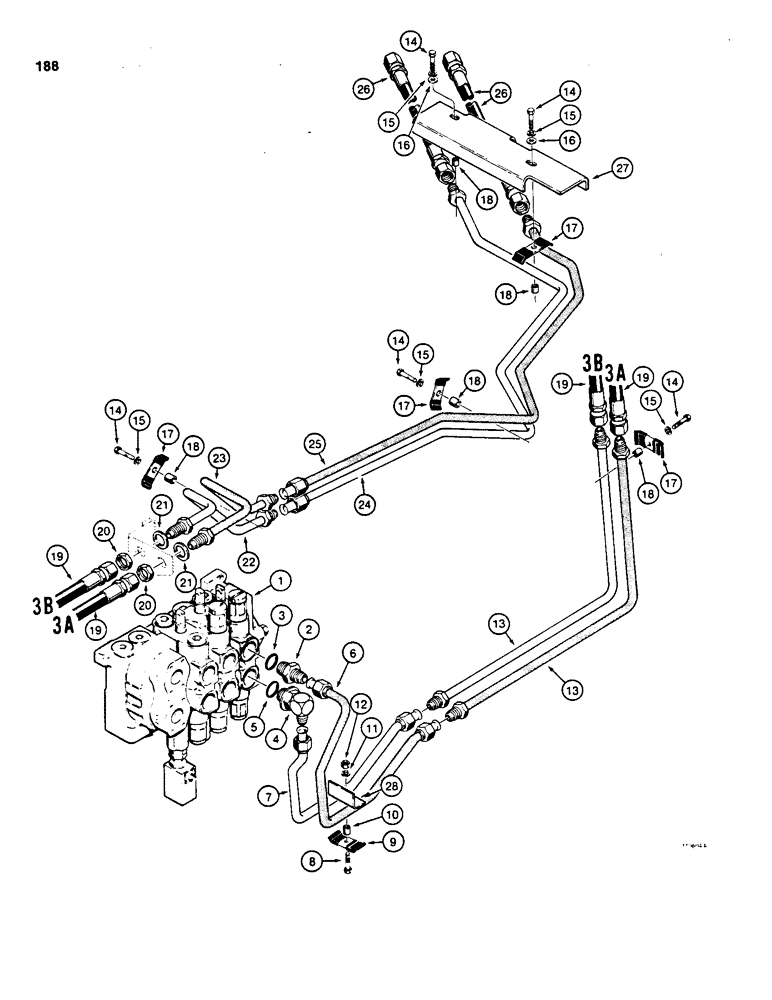

Запчасти Case 850C (188) - LOADER CLAM HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - see figures 248 thru 250 for correct valve

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

6

R35575

TUBE,0.75" OD

- at valve, upper, A port

1шт.

7

R35577

TUBE,0.75" OD

- at valve, lower, B port

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

D40236

CLAMP

- tubes

1шт.

10

R29844

SPACER,3/8" Pipe x 11/16"

- clamp

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

13

R35579

TUBE,0.75" OD x 18.19, 15.19" L

- from control valve

2шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

5шт.

15

92-6

LOCK WASHER,3/8"

5шт.

16

195-25

WASHER,3/8"

2шт.

17

D40236

CLAMP

- tubes

4шт.

18

R29844

SPACER,3/8" Pipe x 11/16"

- clamp

5шт.

19

R35582

HOSE

- 44" (1118 mm) long

2шт.

20

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16" - 12 NC

2шт.

21

B18145

WASHER

- flat

2шт.

22

R35588

PIPE,0.75" OD

TUBE - upper, B port

1шт.

23

R35590

TUBE,0.75" OD

- lower, A port

1шт.

24

R35584

TUBE,0.75" OD

- lower, A port

1шт.

25

R35586

TUBE,0.75" OD x 38.79, 8.09" L

- upper, B port

1шт.

26

R35428

HOSE

- 50" (1270 mm) long

2шт.

27

R35573

GUARD

- hydraulic lines

1шт.

28

R27733

BRACKET

- clamp mounting, welds to seat and tank frame

1шт.
