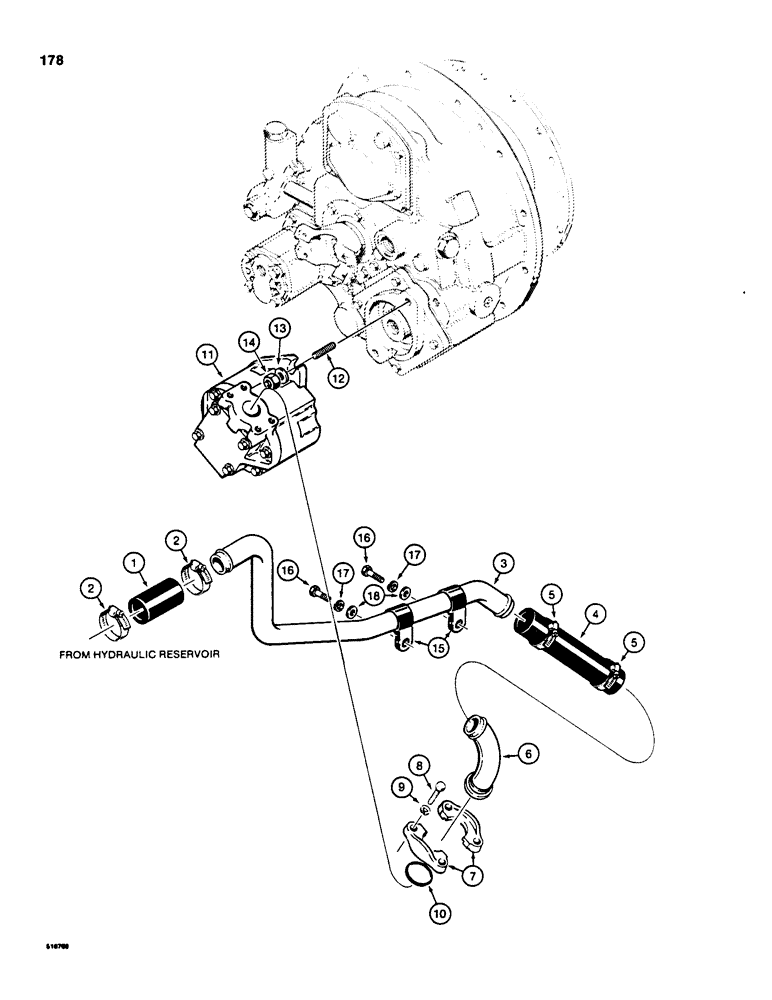

Запчасти Case 850C (178) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (07) - HYDRAULIC SYSTEM

1

R43916

HOSE

- at hydraulic reservoir, 1-1/2" (38 mm) ID x 3" (76 mm) long

1шт.

2

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

adjustable 1.25/2.625 HD Worm

2шт.

3

R45923

- from hydraulic reservoir

1шт.

4

R45924

HOSE

, Serial Range: --pump

1шт.

5

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

adjustable 1.25/2.625 HD Worm

2шт.

6

R45926

PIPE,1.5" OD x 4.6, 1.05" L

TUBE - to pump

1шт.

7

A12301

CLAMP,Half

CLAMP - split flange

2шт.

8

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

9

92-7

LOCK WASHER,7/16"

4шт.

10

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- pump, inlet side

1шт.

11

R37951

PUMP

- equipment, parts list figure 182

1шт.

12

R24322

STUD

- 1/2" - 13 NC

2шт.

13

R24718

WASHER

- hardened

2шт.

14

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

15

49773

CLAMP

- tube from hydraulic reservoir

2шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

195-25

WASHER,3/8"

2шт.
