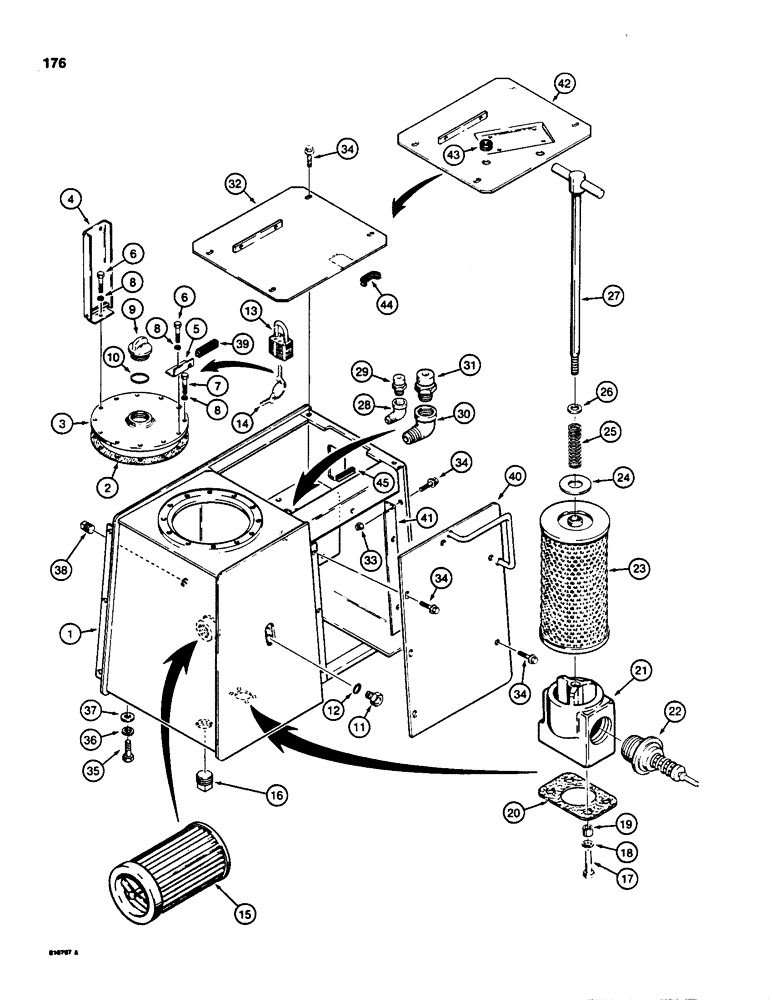

Запчасти Case 850C (176) - HYDRAULIC RESERVOIR (07) - HYDRAULIC SYSTEM

1

R40731

TANK

HYDRAULIC RESERVOIR - includes operators manual box and various decals, see figures 364 and 366 for these refs

1шт.

2

R27346

GASKET

- cover

1шт.

3

R27322

PLATE

COVER - access, hydraulic reservoir

1шт.

4

R31153

GUARD

- filler cap

1шт.

5

R31155

ANGLE

BRACKET - lock

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with filler cap guard only Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

10-12шт.

8

92-6

LOCK WASHER,3/8"

12шт.

9

L100349

PLUG

FILLER CAP - metal

1шт.

10

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- filler cap

1шт.

11

R29753

ELECTRICAL GAUGE

SIGHT GAUGE - hydraulic tank

2шт.

13

D93753

PADLOCK

- hydraulic reservoir, includes keys, Includes: Ref. 14

1шт.

14

R29555

KEY

- for Master padlock only

2шт.

14

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

15

D33557

FILTER, ELEMENT

FILTER - suction

1шт.

16

221-37

PLUG

- square socket, 1-1/4" NPT

1шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

T53868

BUSHING

SPACER - filter block mounting

2шт.

20

R27324

GASKET

- filter block

1шт.

21

R36277

BLOCK ASSY.

BLOCK - filter

1шт.

22

R27525

VALVE

BYPASS VALVE - oil filter

1шт.

23

L52029

FILTER, ELEMENT

ELEMENT - filter

1шт.

24

95-12

WASHER,3/4"

- flat, 3/4"

1шт.

25

F61200

SPRING

- filter

1шт.

26

95-8

WASHER,1/2"

flat 1/2"

1шт.

27

R36602

ROD

- element retaining

1шт.

28

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

29

R15536

VALVE

RELIEF VALVE - hydraulic reservoir

1шт.

30

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

STREET ELBOW - 90 degree, 1" NPT

1шт.

31

R36450

BREATHER

- hydraulic reservoir

1шт.

32

R40723

COVER

- top, includes decals, used on models without winch

1шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

34

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

13шт.

35

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

37

195-41

WASHER,5/8"

- flat, 5/8"

4шт.

38

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

1шт.

39

R38772

RUBBER STRIP

TRIM - edge, bracket, filler cap guard, 2-3/4" (71 mm) long, may be cut from D52812 bulk

1шт.

40

R42561

LARGE PLATE

COVER - side

1шт.

41

R42559

BRACKET

- support, side cover

1шт.

42

R42568

PLATE

COVER - top, includes decals, used on winch models only

1шт.

43

49562

GROMMET,11/16" ID x 1" Groove Dia

- cover, winch cables, if used

2шт.

44

REF

INSTRUCTION

TRIM - edge, hydraulic reservoir cover, used on cab models only, 3" (76 mm) long, cut from D52812

1шт.

45

REF

INSTRUCTION

TRIM - edge, hydraulic reservoir, used on cab models only, 2" (51 mm) long, cut from D52812

1шт.

D52812

RUBBER STRIP

TRIM - edge, bulk, 83" (2108 mm) long

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, sight gauge

2шт.
