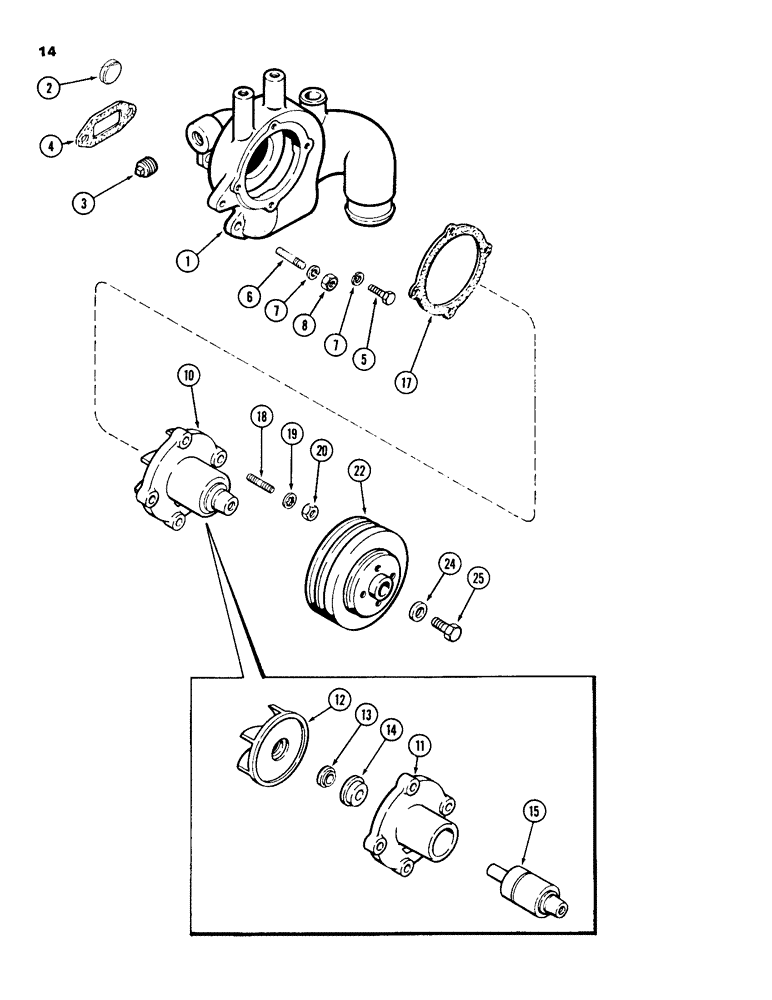

Запчасти Case 850C (014) - WATER PUMP, WITH TAPPED SHAFT, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

1

A148968

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" (349 mm) cup type

1шт.

3

221-1015

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" PT, square head

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, , Body Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

G102128

BOLT

STUD - body (3/8" NC x 1-7/16")

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

A155180

PUMP

PUMP ASSEMBLY - water, Includes: Ref. 11 - 15

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - water pump

1шт.

12

A152126

IMPELLER

IMPELLER - pump (cast iron)

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

SEAL - pump shaft

1шт.

15

A155272

SHAFT

SHAFT ASSEMBLY - with bearing

1шт.

17

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

18

A62234

STUD

STUD - pump to body (3/8" NC x 1-5/16")

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

3/8" NC hex jam

4шт.

22

A60504

PULLEY

PULLEY - fan drive

1шт.

24

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - pulley

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT - 1/2 x 1-1/4" NF hex (Grade 5)

1шт.
