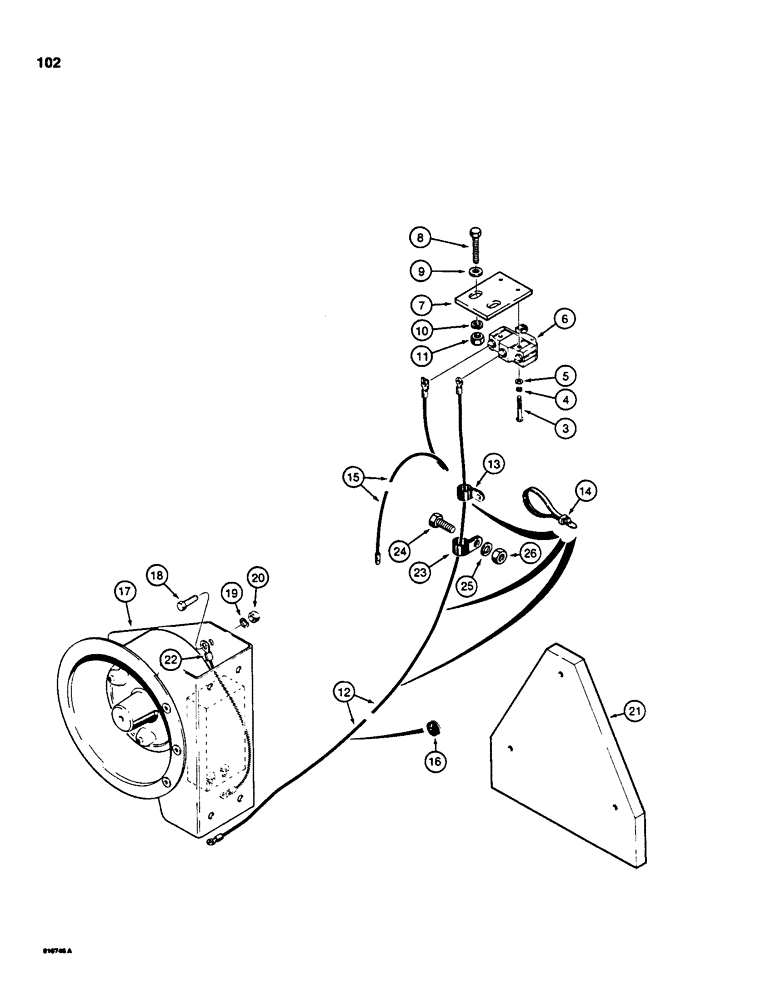

Запчасти Case 850C (102) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

R40432

SWITCH

- push button, backup alarm, uses plug connection, if used

1шт.

1a

D34924

SWITCH

- push button, backup alarm, uses spade-type connection, if used

1шт.

2

R40995

ELECTRICAL WIRE

WIRE - push button to backup alarm switch, with plug connector, if used

1шт.

2a

D39130

ELECTRICAL WIRE

WIRE - push button to backup alarm switch, with spade-type connectors if used

1шт.

3

182-50

SCREW,Sl Pan Hd, #6 - 32 x 1"

- pan head, slotted, no. 6 - 32 NC x 1"

2шт.

4

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

5

195-7

WASHER,#6

- flat, no. 6

2шт.

6

L54683

SWITCH

- backup alarm

1шт.

7

R35733

PLATE

- switch mounting

1шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

R35732

ELECTRICAL WIRE

WIRE - switch to backup alarm

1шт.

13

51200321

CLAMP

- wire, uses seat belt mounting hardware, no longer used, service with R40745 tie straps

1шт.

14

R40745

STRAP

TIE STRAP - wire

3шт.

15

R43836

ELECTRICAL WIRE

WIRE - backup alarm switch to tractor wiring harness

1шт.

16

A23870

GROMMET

- wire, rear panel between fuel tank and hydraulic reservoir

1шт.

17

S223033

BUZZER

BACKUP ALARM - electric

1шт.

18

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

25-104

NUT,1/4"-20, G5

3шт.

21

R31184

PLATE - mounting, backup alarm, used on backhoe models only

1шт.

22

R34956

ELECTRICAL WIRE

WIRE - ground, backup alarm

1шт.

23

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- starter switch wire and backup alarm wire

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.
