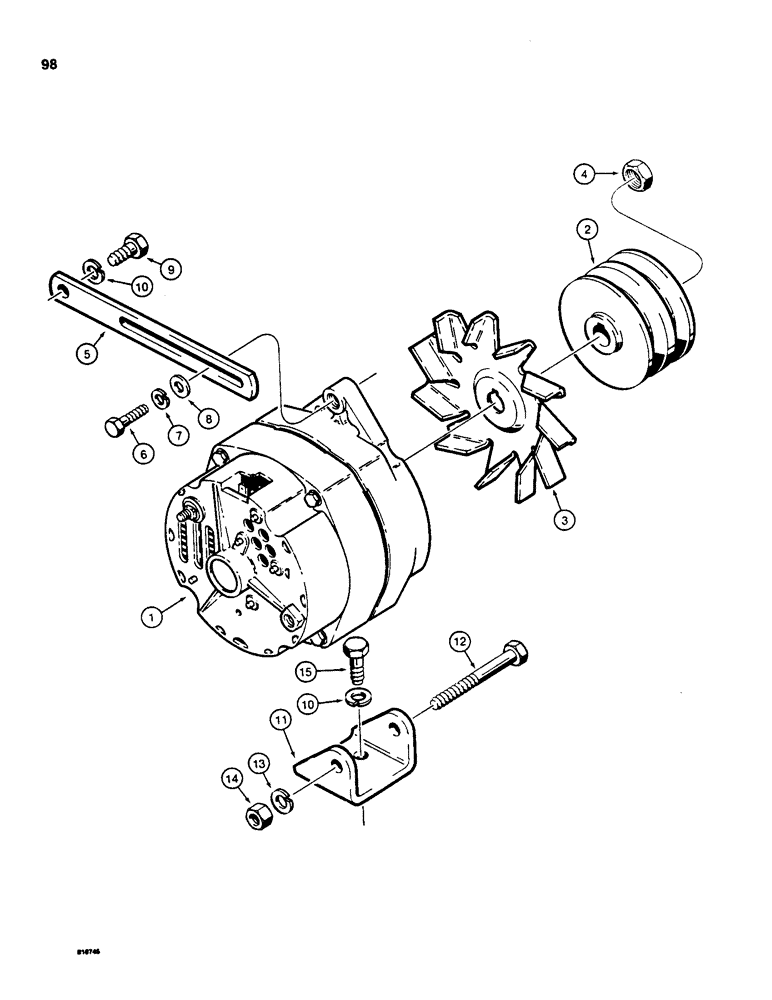

Запчасти Case 850C (098) - ALTERNATOR AND MOUNTING (06) - ELECTRICAL SYSTEMS

1

L101465

ALTERNATOR

ALTERNATOR - Delco no 1103123, 40 amperes, parts list figure 76

1шт.

1

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

1

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

1

AR186124

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

AC186124

CORE-ALTERNATOR

Return Number

1шт.

2

L59716

PULLEY

PULLEY - alternator

1шт.

3

A43384

FAN

FAN - alternator

1шт.

4

825-1006

NUT,M6, Cl 8

NUT - hex, 6 mm x 1, grade 88, output terminal

1шт.

5

R40121

STRAP

STRAP - alternator adjusting

1шт.

6

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex head, 8 mm x 125 x 25 mm, grade 88

1шт.

7

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - flat, 5/16"

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

11

A160391

BRACKET

BRACKET - alternator mounting

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT - hex head, 3/8" - 16 NC x 3"

1шт.

13

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.
