(094) - REAR ELECTRICAL WIRING, REAR WIRING HARNESS TO INSTRUMENT PANEL AND REAR LAMP

Запчасти Case 850C (094) - REAR ELECTRICAL WIRING, REAR WIRING HARNESS TO INSTRUMENT PANEL AND REAR LAMP (06) - ELECTRICAL SYSTEMS

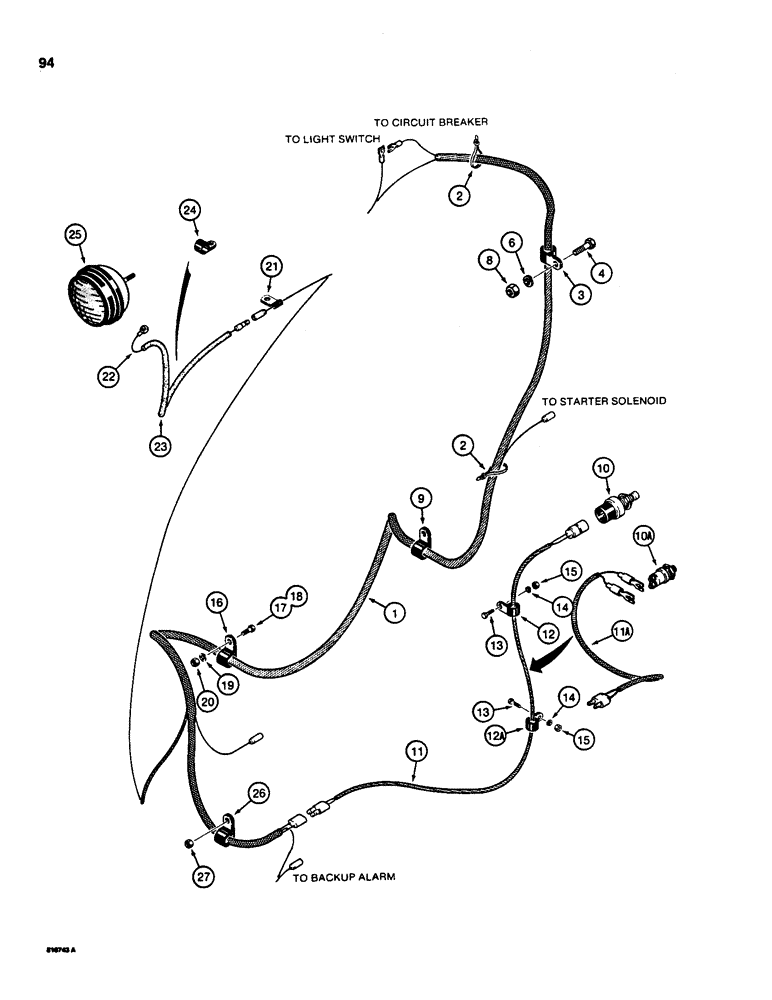

Схема запчастей Case 850C - (094) - REAR ELECTRICAL WIRING, REAR WIRING HARNESS TO INSTRUMENT PANEL AND REAR LAMP (06) - ELECTRICAL SYSTEMS
10a
9
20
13
14
25
23
4
21
2
11
10
11a
13
27
16
17
12
18
2
1
15
19
6
15
24
22
8
26
3
12a
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R45921

HARNESS

- rear electrical

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - harness, at instrument panel

2шт.

3

84183C1

CLAMP

- harness, holds all wires, cables, and hoses from instrument panel

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

6

92-8

LOCK WASHER,1/2"

1шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

9

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- harness, uses brake master cylinder mounting hardware

1шт.

10

R40432

SWITCH

PUSH BUTTON - starter switch, uses plug connection, if used

1шт.

10a

D34924

SWITCH

- starter, push button, uses spade-type connector, if used

1шт.

11

R40995

ELECTRICAL WIRE

WIRE - starter switch, with plug connector, if used

1шт.

11a

D39130

ELECTRICAL WIRE

WIRE - starter switch, with spade-type connectors, if used

1шт.

12

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- starter switch wire, upper

1шт.

12a

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- starter switch wire, lower

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

16

49859

CLAMP

- rear wiring harness

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Loader models only Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Dozer and drawbar models only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

80049853

YOKE

- rear wiring harness, uses battery support plate hardware

1шт.

22

A14733

ELECTRICAL WIRE

WIRE - rear lamp

1шт.

23

D42919

LOOM

COVER - rear lamp wire

1шт.

24

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- rear lamp wire, used with backhoe

3шт.

25

L45149

HEADLIGHT

LAMP - rear, parts list figure 100

1шт.

26

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- rear electrical harness, attaches to transmission filter

1шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
