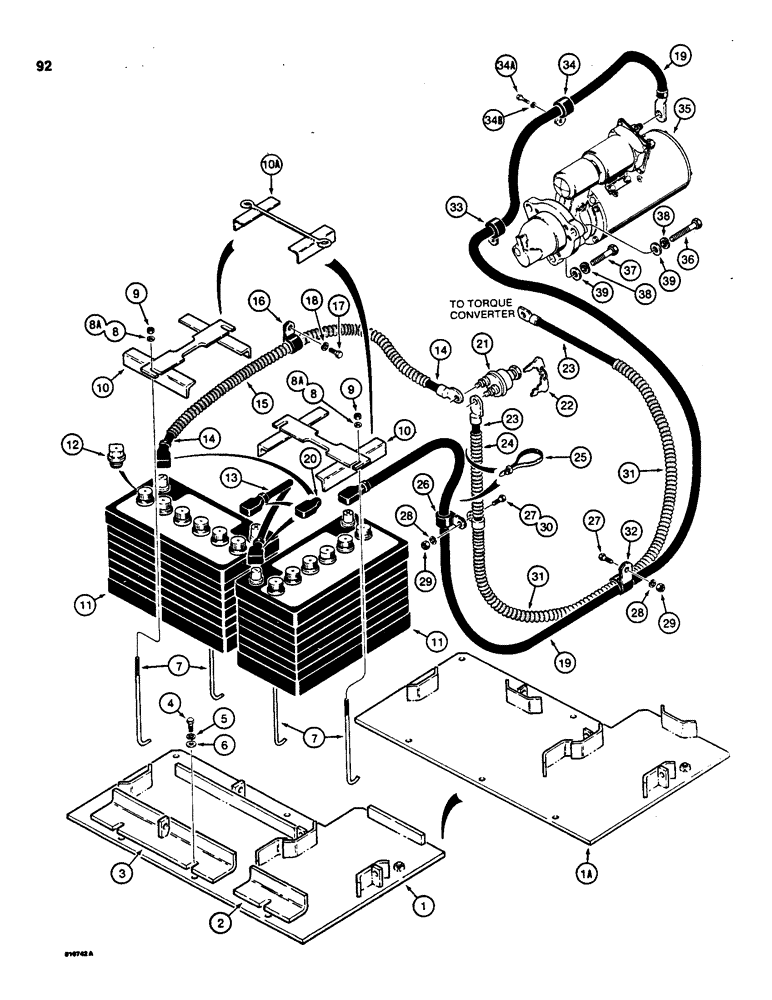

Запчасти Case 850C (092) - REAR ELECTRICAL WIRING, BATTERY CABLES TO STARTER (06) - ELECTRICAL SYSTEMS

1

R32772

SUPPORT

PLATE - battery support, no longer used, order R48098 plate and D86424 bracket, ref. 10A

1шт.

1a

R48098

SUPPORT

PLATE - battery support

1шт.

2

R32767

ANGLE

BRACKET - battery retaining, rear, narrow

1шт.

3

R32718

ANGLE

BRACKET - battery retaining, rear, wide

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

195-25

WASHER,3/8"

6шт.

7

R27652

ROD

- threaded, battery retaining

4шт.

8

195-21

WASHER,5/16"

- flat, , Used with R32723 (Ref. 10) bracket only 5/16"

4шт.

8a

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16" used with D86424 bracket (ref. 10A) only

4шт.

9

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

10

R32723

BRACKET

- battery retaining, top, no longer used, order D86424 bracket (item 10A) and (4) 95-5 washers (ref. 8A)

2шт.

10a

D86424

RETAINER

BRACKET - battery retaining, top

2шт.

11

A38411

DRY BATTERY

- 12 volt, service replacement

2шт.

When replacing battery, use the 6 nonspill caps from existing battery or order 6 new nonspill caps.

1шт.

12

A60553

CAP

- battery, nonspill

12шт.

When replacing battery, use the 6 nonspill caps from existing battery or order 6 new nonspill caps.

1шт.

13

R47221

CABLE

- jumper, batteries, with boots, replaces A7440 cable, without boots

1шт.

14

R47201

CABLE PULLING GRIP

CABLE - battery, negative, with boots, replaces R45989 cable without boots

1шт.

15

R45990

CONDUIT - negative battery cable, 30" (762 mm) long

1шт.

16

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- negative battery cable

1шт.

17

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

R45988

CABLE PULLING GRIP

CABLE - battery, positive

1шт.

20

A27072

COVER

BOOT - battery cable terminal, used on cables without attached boots

3шт.

21

R47440

SWITCH

AND KEY - master disconnect, Includes: Ref. 22

1шт.

22

R30074

SET

KEY - set of two

1шт.

23

R40381

CABLE

- battery ground

1шт.

24

R40777

CONDUIT

- battery ground cable, 8" (203 mm) long

1шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - positive battery cable to battery ground cable, below master switch

2шт.

26

49859

CLAMP

- P-style, battery ground cable

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Loader models only Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Dozer and drawbar models only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

31

R40778

CONDUIT

- battery ground cable, 22" (559 mm) long

1шт.

32

S86530

CLAMP

- positive battery cable and ground cable

1шт.

33

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

- P-style, twisted, positive battery cable, uses engine to, flywheel housing hardware

1шт.

34

S86530

CLAMP

- positive battery cable to circuit breaker mounting plate

1шт.

34a

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

34b

92-5

LOCK WASHER,5/16"

1шт.

35

REF

INSTRUCTION

STARTER - for correct assembly and components, see figures 78 thru 84

1шт.

36

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

1шт.

37

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

38

92-8

LOCK WASHER,1/2"

3шт.

39

R24323

WASHER

- hardened, 1/2"

3шт.
