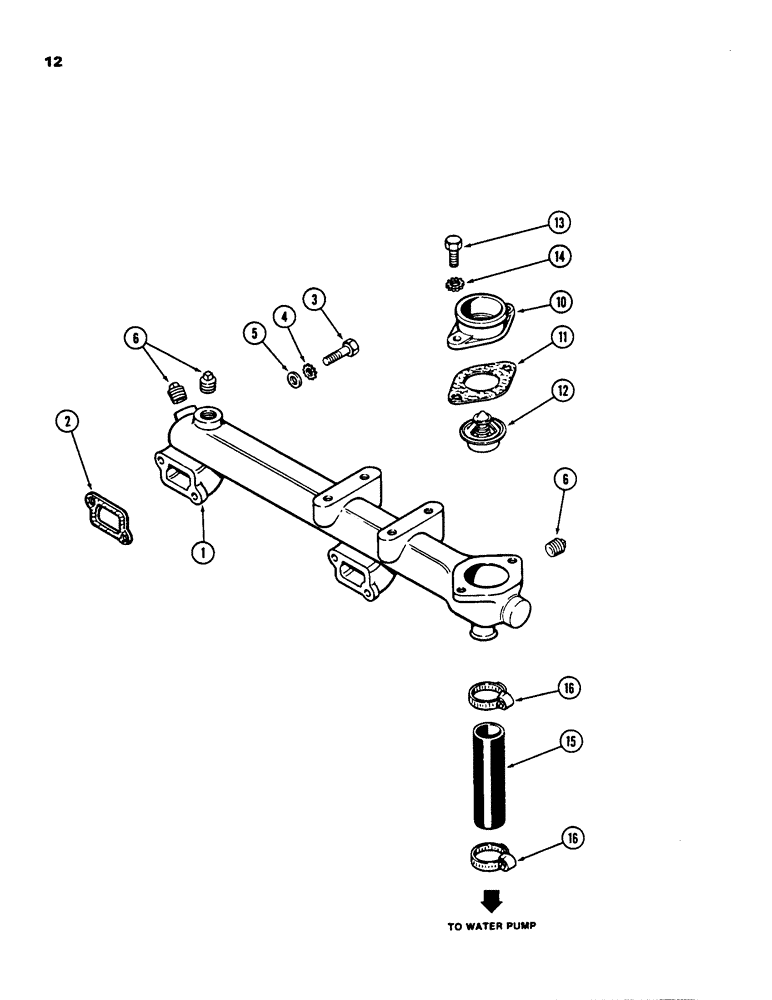

Запчасти Case 850C (012) - WATER MANIFOLD AND THERMOSTAT, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

1

A141963

MANIFOLD

- water

1шт.

2

A58637

MANIFOLD GASKET

- manifold

2шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Manifold Hex, 3/8"-16 x 1 1/2", G5

2шт.

3

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold Hex, 3/8"-16 x 2", G5

2шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

5

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.5 x 20.6 x 1.6 mm)

4шт.

6

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - (1/2" P.T., sq. hd.)

3шт.

10

A58736

HOUSING

-thermostat

1шт.

11

G46907

GASKET

-, Serial Range: housing-manifold

1шт.

12

A57641

THERMOSTAT

- water temperature

1шт.

13

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Housing Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

15

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water by-pass, 1-1/4" ID x 3-5/16" (318 ID x 841 mm)

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (302 to 445 mm)

2шт.
