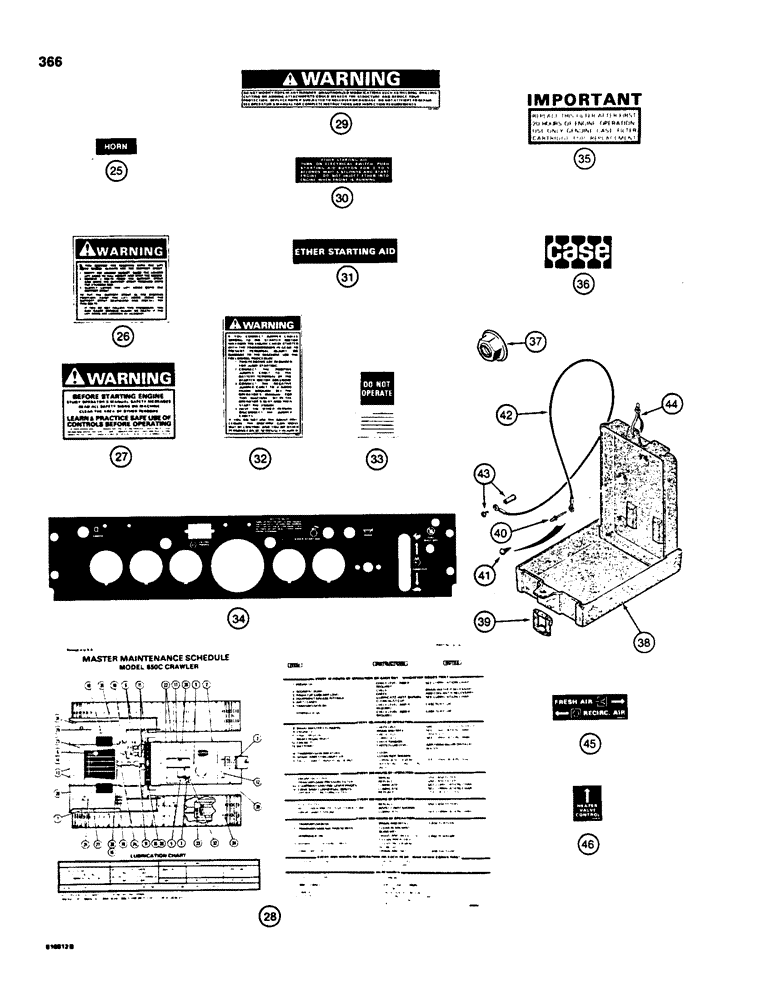

Запчасти Case 850C (366) - DECALS (05) - UPPERSTRUCTURE CHASSIS

R45929

DECAL

KIT - includes black decals, if used, continued, Includes: Ref. 25 - 34

1шт.

R48719

KIT

- includes brown decals, if used, continued, Includes: Ref. 25 - 34

1шт.

25

321-3294

DECAL

- Horn, if used, may be part of instrument panel decal, ref 34

1шт.

26

321-6488

DECAL

- Warning, safety strut usage

2шт.

27

321-3705

DECAL

- Warning, Before Starting Engine

1шт.

28

321-6321

DECAL

- Master Maintenance Schedule, dozer and drawbar models

1шт.

28

R49795

DECAL

- Master Maintenance Schedule, loader models

1шт.

29

321-4192

DECAL

- Warning, ROPS modification

1шт.

30

321-2946

DECAL

- Ether Starting Aid instructions, if used, may be part of instrument panel decal, ref 34

1шт.

31

321-2435

DECAL

- Ether Starting Aid button, if used, may be part of instrument panel decal, ref 34A

1шт.

32

321-5974

DECAL

- Warning, If you connect jumper cables wrong

1шт.

33

321-4614

TAG

- Do Not Operate

1шт.

34

R47218

DECAL

- instrument panel, includes horn decal and ether starting aid decals, black, if used

1шт.

34

R48593

DECAL

- instrument panel, includes horn decal and ether starting aid decals, brown, if used

1шт.

35

321-2101

DECAL

- replace oil filter

1шт.

36

321-4739

EMBLEM

- Case, Serial Range: attaches-grille

1шт.

37

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, emblem mounting, Includes: Ref. 38 and 39

2шт.

38

R46464

CASE

BOX - operators manual

1шт.

39

N7189

BEARING

LATCH - manual box

1шт.

40

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16" (5 mm) diameter

3шт.

41

187-1082

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1"

SCREW - self-tapping, 1/4" - 20 NC x 1", plated, used on models with a noise reduction pad, if used

3шт.

42

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

43

NSS

NOT SOLD SEPARAT

RETAINER - manual

1шт.

44

R40745

STRAP

TIE STRAP - manual box

1шт.

45

R46824

SHAFT

DECAL - Fresh Air, Recirc. Air, used on cab models only

1шт.

46

R46826

DECAL

- heater valve control, on heater hose guard, used on cab models only

1шт.
