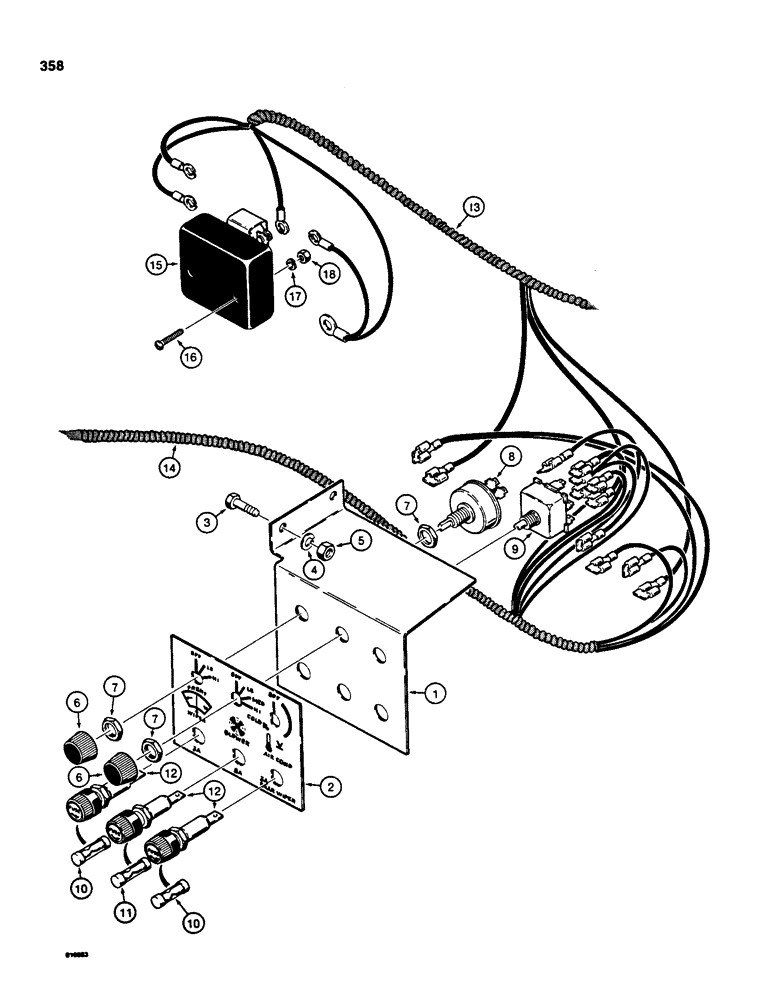

Запчасти Case 850C (358) - CAB, CONTROL PANEL AND WIRING (05) - UPPERSTRUCTURE CHASSIS

1

R44118

BRACKET

- control panel

1шт.

2

321-5854

LARGE PLATE

PLATE - control panel

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

A42578

KNOB

- controls

2шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switch

3шт.

8

F43359

SWITCH

- front windshield wiper

1шт.

9

A42622

SWITCH

- blower

1шт.

10

223-38

FUSE,3 Amp, Type 3AG

- front and rear windshield wipers, 3 amperes, 3AG3

2шт.

11

223-35

FUSE,8 Amp, Type 3AG

- blower, 8 amperes, 3AG8

1шт.

12

A22874

HOLDER

- fuse

3шт.

13

R44263

HARNESS

- from tractor instrument panel to cab control panel and relay switch

1шт.

14

R44264

HARNESS

- control panel to cab accessories

1шт.

15

R44286

RELAY

- cab, electrical accessories

1шт.

16

182-549

SCREW,Slotted Pan Hd, #8-32 x 3/4"

- pan head slotted, no. 8 - 32 NC x 3/4", plated

2шт.

17

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

18

129-16

NUT,#8-32

2шт.
