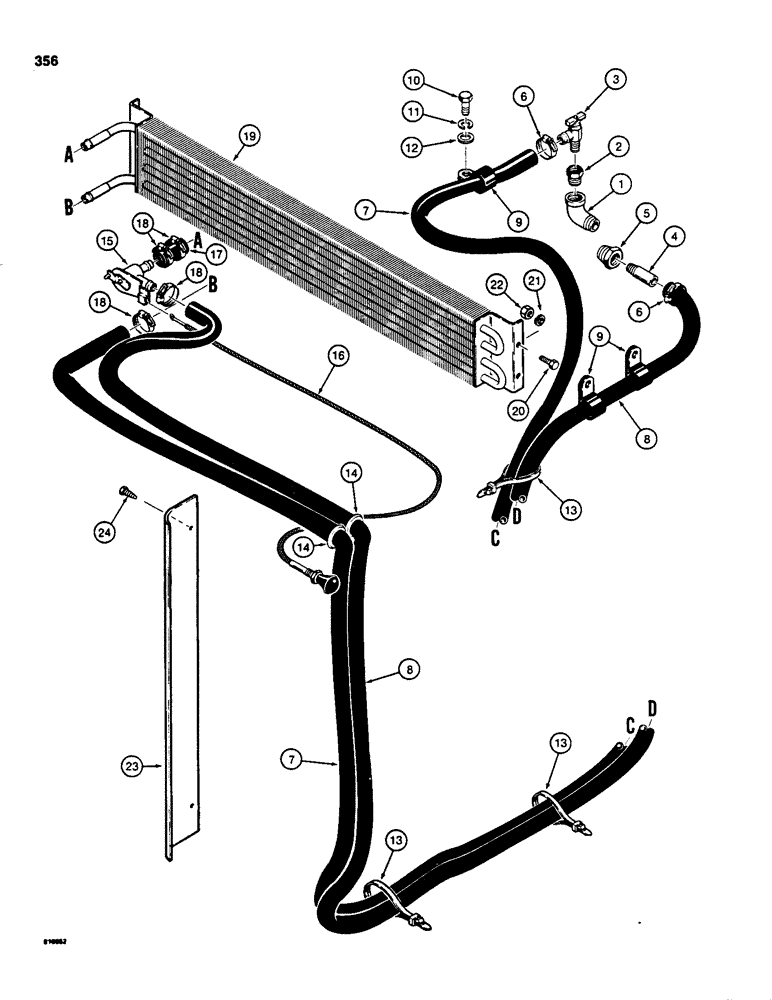

Запчасти Case 850C (356) - CAB HEATING SYSTEM (05) - UPPERSTRUCTURE CHASSIS

1

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

STREET ELBOW - 90 degree

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8"

1шт.

3

A16764

VALVE

SHUTOFF VALVE - at manifold

1шт.

4

A19940

PIPE

NIPPLE - straight, 3/8" NPT

1шт.

5

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adjustable, hose

2шт.

7

REF

INSTRUCTION

HOSE - from manifold, 221" (5600 mm) long, cut from A42610

1шт.

8

REF

INSTRUCTION

HOSE - to manifold, 236" (6000 mm) long, cut from A42610

1шт.

9

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hoses

3шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 1"

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

195-25

WASHER,3/8"

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hoses

3шт.

14

353-482

PLUG

GROMMET - 1-3/16" (30 mm) diameter

2шт.

15

F63865

VALVE

FLOW CONTROL VALVE - heater

1шт.

16

F44755

CABLE

- heater control

1шт.

17

REF

INSTRUCTION

HOSE - flow control valve to heater core, 2" (51 mm) long, cut from A42610

1шт.

18

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adjustable, hoses

4шт.

19

F44713

CORE

- heater

1шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

23

N7665

GUARD - heater hoses, right-hand side of cab

1шт.

24

187-1072

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - hex head, self-tapping, 1/4" - 20 NC x 3/4"

2шт.

A42610

LARGE HOSE

HOSE - bulk, 5/8" (16 mm) ID x 1" (25 mm) OD x 50 ft (1524 cm) long

1шт.
