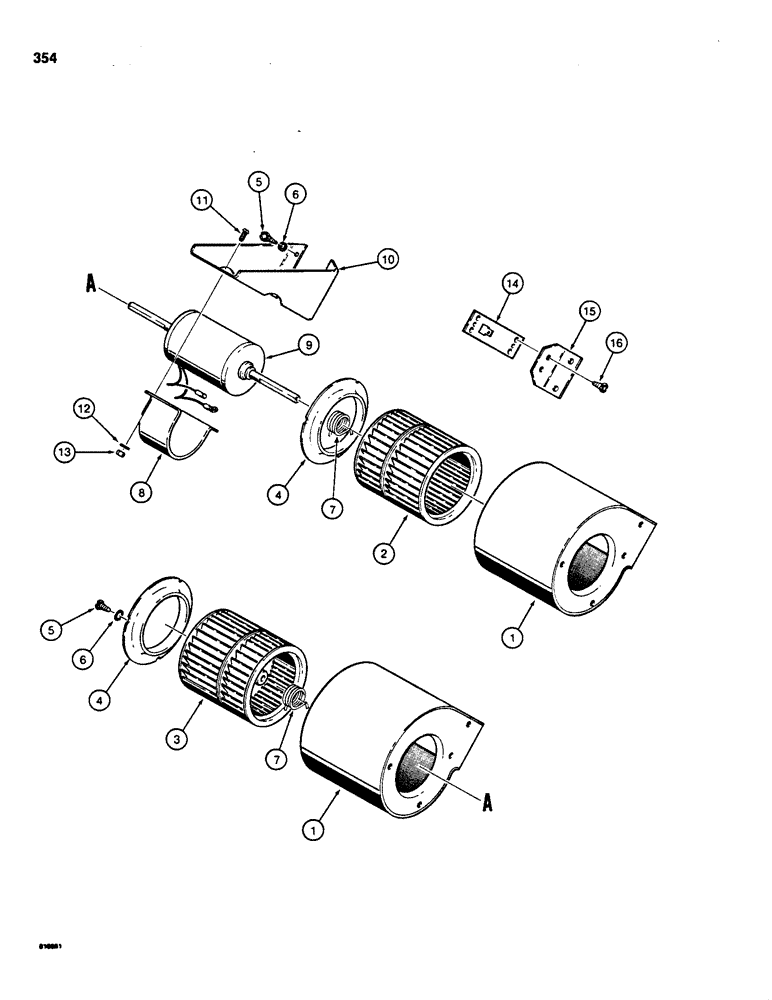

Запчасти Case 850C (354) - CAB BLOWER (05) - UPPERSTRUCTURE CHASSIS

1

F96724

HOUSING

- blower fan

2шт.

2

F45020

BLOWER,Fan, RH

FAN - blower, right-hand

1шт.

3

F45021

BLOWER,Fan

FAN - blower, left-hand

1шт.

4

F63655

RETAINER

COVER - ring, fan end

2шт.

5

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, no. 10 - 16 NC x 1/2"

17шт.

6

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

17шт.

7

F44948

SPRING

- retainer, fan

2шт.

8

F44728

CLAMP

-, Serial Range: motor-bracket

1шт.

9

F44875

MOTOR, ELECTRIC

MOTOR - blower, 24 volt

1шт.

10

F44729

BRACKET

- mounting, motor

1шт.

11

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - no 10 - 24 NC x 3/4"

4шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

13

129-17

NUT,Hex, #10 - 24

NUT - hex, no 10 - 24 NC

4шт.

14

F44903

RESISTOR

- blower

1шт.

15

R44261

SUPPORT

BRACKET - resistor mounting

1шт.

16

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, no. 10 - 16 NC x 1/2", plated

4шт.
