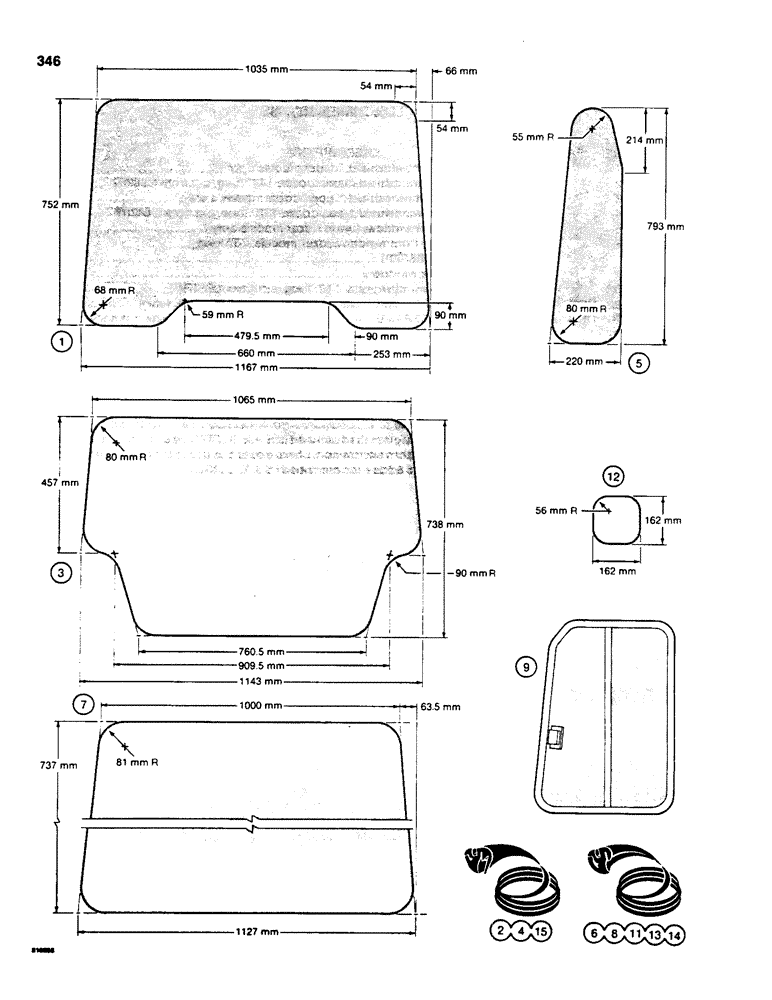

Запчасти Case 850C (346) - CAB GLASS, METRIC DIMENSIONS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
GLASS - front windshield, loader models only
1шт.
2
NSS
NOT SOLD SEPARAT
SEAL - front windshield glass, loader, 3607 mm long, cut from D88782
1шт.
3
NSS
NOT SOLD SEPARAT
GLASS - front windshield, upper, dozer models only
1шт.
4
NSS
NOT SOLD SEPARAT
SEAL - front windshield glass, dozer, 3353 mm long, cut from D88782
1шт.
5
NSS
NOT SOLD SEPARAT
GLASS - front window, lower, dozer models only
2шт.
6
NSS
NOT SOLD SEPARAT
SEAL - lower front window, dozer models, 1905 mm long, cut from D88770
2шт.
7
NSS
NOT SOLD SEPARAT
GLASS - rear window
1шт.
8
NSS
NOT SOLD SEPARAT
SEAL - rear window glass, 3480 mm long, cut from D88770
1шт.
9
D87174
GLASS AND FRAME - side, left hand, front; right hand, rear
2шт.
10
D87175
GLASS AND FRAME - side, right hand, front; left hand, rear, not shown
2шт.
11
NSS
NOT SOLD SEPARAT
SEAL - side window, 2159 mm long, cut from D88770
4шт.
12
NSS
NOT SOLD SEPARAT
GLASS - fuel access
1шт.
13
NSS
NOT SOLD SEPARAT
SEAL - fuel access glass, 533 mm long, cut from D88770
1шт.
14
D88770
SEAL
- 152 m roll
1шт.
15
D88782
SEAL - 152 m roll
1шт.
Выбрано товаров: 15
