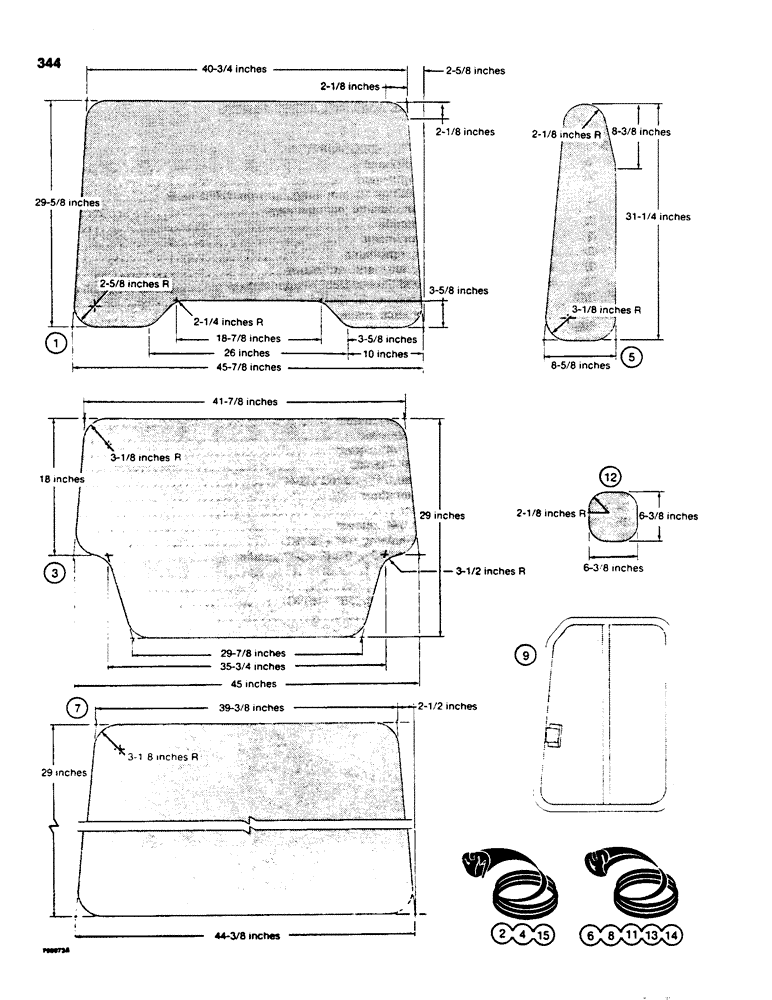

Запчасти Case 850C (344) - CAB GLASS, U.S. DIMENSIONS (05) - UPPERSTRUCTURE CHASSIS

1

NSS

NOT SOLD SEPARAT

GLASS - front windshield, loader models only

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - front windshield glass, loader, 142" long, cut from D88782

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - front windshield, upper, dozer models only

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - front windshield glass, dozer, 132" long, cut from D88782

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - front window, lower, dozer models only

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - lower front window, dozer models, 75" long, cut from D88770

2шт.

7

NSS

NOT SOLD SEPARAT

GLASS - rear window

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rear window glass, 137" long, cut from D88770

1шт.

9

D87174

GLASS AND FRAME - side, left hand, front; right hand, rear

2шт.

10

D87175

GLASS AND FRAME - side, right hand, front; left hand, rear, not shown

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - side window, 85" long, cut from D88770

4шт.

12

NSS

NOT SOLD SEPARAT

GLASS - fuel access

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - fuel access glass, 21" long, cut from D88770

1шт.

14

D88770

SEAL

- 50 ft roll

1шт.

15

D88782

SEAL - 50 ft roll

1шт.
