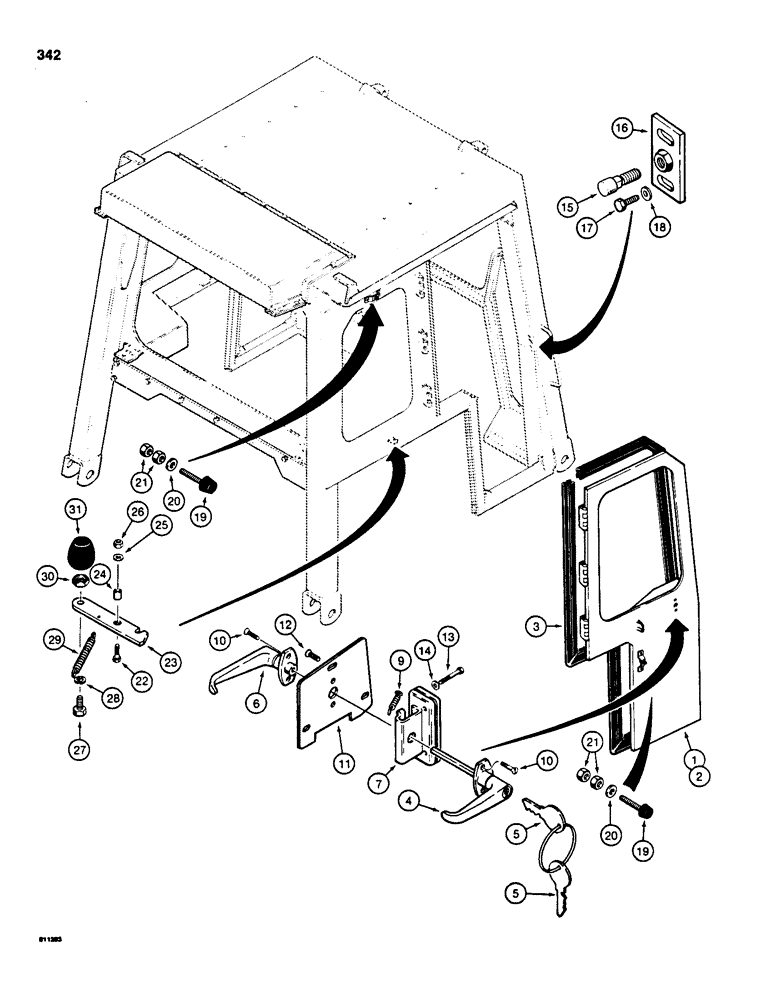

Запчасти Case 850C (342) - CAB, DOORS AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
N7668
DOOR ASSY.
DOOR - cab, left-hand
1шт.
2
N7669
DOOR ASSY.
DOOR - cab, right-hand
1шт.
3
REF
INSTRUCTION
SEAL - door, 162" (4115 mm) long, cut from N7661 bulk
1шт.
4
D88771
LOCK
HANDLE - door, outside, includes keys, Includes: Ref. 5
2шт.
5
D88772
KEY
- door handle
2шт.
6
D88773
HANDLE
- door, inside
2шт.
7
D88776
LATCH ASSY.
LATCH - door, right-hand, Includes: Ref. 9
1шт.
8
D88774
LATCH ASSY.
LATCH - door, left-hand, not shown, Includes: Ref. 9
1шт.
9
D88775
SPRING
- D88776 and D88774 door latches
1шт.
10
182-561
SCREW,Slotted Pan Hd, #10-24 x 3/4"
- slotted, no 10 - 24 NC x 3/4", plated
8шт.
11
N7664
COVER
- door latch, inside
2шт.
12
182-547
SCREW,Cross Pan Hd, 1/4"-20 x 1/2"
- Phillips, 1/4" - 20 NC x 1/2"
6шт.
13
113-40
BOLT,Hex, 1/4" - 20 X 3/4", Gr 2
- hex head, 1/4" - 20 NC x 3/4", plated
4шт.
14
195-102
WASHER,1/4"
- flat, , plated 1/4"
4шт.
15
F45073
PIN
STRIKER - door
2шт.
16
N7671
MOUNTING PARTS
PLATE - mounting, door striker
2шт.
17
113-40
BOLT,Hex, 1/4" - 20 X 3/4", Gr 2
- hex head, 1/4" - 20 NC x 3/4", plated
4шт.
18
195-102
WASHER,1/4"
- flat, , plated 1/4"
4шт.
19
N7673
BUMPER
- rubber, door
4шт.
20
195-102
WASHER,1/4"
- flat, , plated 1/4"
4шт.
21
9635082
NUT,5/16" - 18, Gr 5
8шт.
22
113-40
BOLT,Hex, 1/4" - 20 X 3/4", Gr 2
- hex head, 1/4" - 20 NC x 3/4"
2шт.
23
D88793
LATCH
- for open door
2шт.
24
D88794
BUSHING
- latch
2шт.
25
195-102
WASHER,1/4"
- flat, , plated 1/4"
2шт.
26
86625061
NUT,1/4"-20, GB
NUT - hex, self-locking, 1/4" - 20 NC
2шт.
27
113-286
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd
- hex head, 3/8" - 16 NC x 3/4", plated
2шт.
28
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
29
D88775
SPRING
- latch
2шт.
30
131-407
LOCK NUT,Pal, 3/8" - 16, 0.145" High
NUT - hex, self-locking, 3/8"-16 NC
2шт.
31
D53845
KNOB
- latch
2шт.
N7661
DOOR SEAL
- bulk roll, 25 ft. (762 cm) long
1шт.
Выбрано товаров: 32
