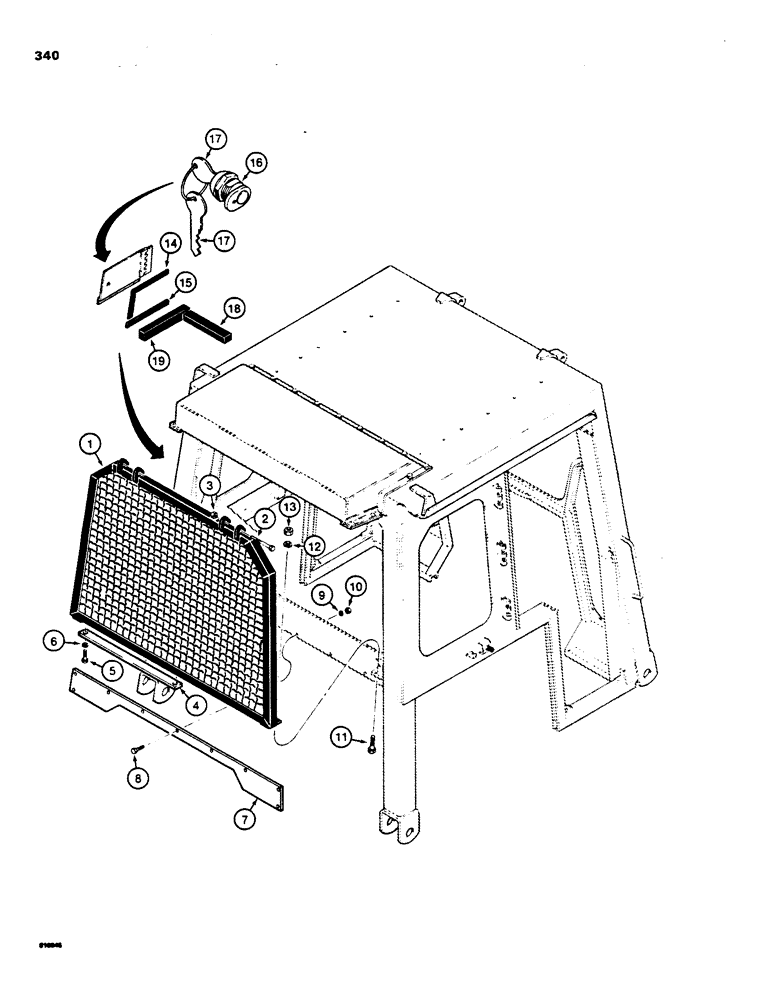

Запчасти Case 850C (340) - CAB, REAR SCREEN AND FUEL ACCESS (05) - UPPERSTRUCTURE CHASSIS

1

D88789

SCREEN - rear, hinged

1шт.

2

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

3

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

4

N7662

BAR

- rear screen, lower

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

D88786

PANEL - rear, below screen, if used

1шт.

8

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

9шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

9шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

7шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL - strip, fuel access door, 24" (610 mm) long, cut from D88778

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - strip, under fuel access door, 12" (305 mm) long, cut from D88801

1шт.

16

D88779

LOCK

- fuel access door, includes keys, Includes: Ref. 17

1шт.

17

D88795

KEY, IGNITION

KEY - lock, with ring

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - fuel access, base, below serial number plate, 9-1/2" (241 mm) long,cut from D88781

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - fuel access, base, below glass, 10-1/2" (267 mm) long, cut from D88781

1шт.

D88778

SEAL - strip, 50 ft. (15.2 m) long

1шт.

D88801

SEAL - strip, 50 ft. (15.2 m) long

1шт.

D88781

SEAL - 50 ft. (15.2 mm) long

1шт.
