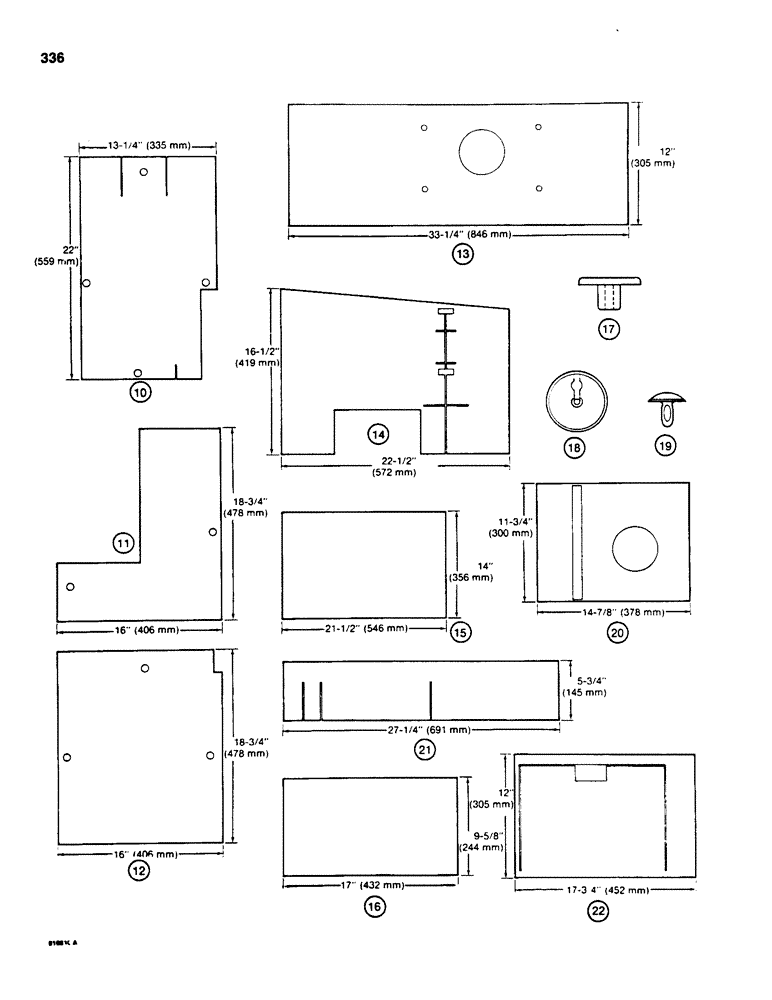

Запчасти Case 850C (336) - NOISE REDUCTION PADS (05) - UPPERSTRUCTURE CHASSIS

10

REF

INSTRUCTION

PAD - left-hand, floor plate, make from R30870 bulk

1шт.

11

REF

INSTRUCTION

PAD - step plates, loader models only, make from R30870 bulk

2шт.

12

REF

INSTRUCTION

PAD - step plates, dozer models only, make from R30870 bulk

2шт.

13

REF

INSTRUCTION

PAD - hood, left-hand, used on models with turbocharger, make from R30870 bulk

1шт.

14

REF

INSTRUCTION

PAD - fuel tank, front, make from R30870 bulk

1шт.

15

REF

INSTRUCTION

PAD - fuel tank, right-hand side, make from R30870 bulk

1шт.

16

REF

INSTRUCTION

PAD - air intake chamber, make from R30870 bulk

1шт.

17

R37161

RETAINER

- neoprene, used with item no. 8

8шт.

18

R37160

RETAINER

- clip, used on pads for hoods

25шт.

19

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

RETAINER - pad for ROPS canopy

8шт.

20

REF

INSTRUCTION

PAD - right-hand hood, front, used on models with turbocharger, make from R30870 bulk

1шт.

21

REF

INSTRUCTION

PAD - behind instrument panel, make from R30870 bulk

1шт.

22

REF

INSTRUCTION

PAD - right-hand hood, rear, used on models with turbocharger, make from R30870 bulk

1шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.

345-44

ADHESIVE

- spray can, for attaching rubber pads to metal surface

1шт.
