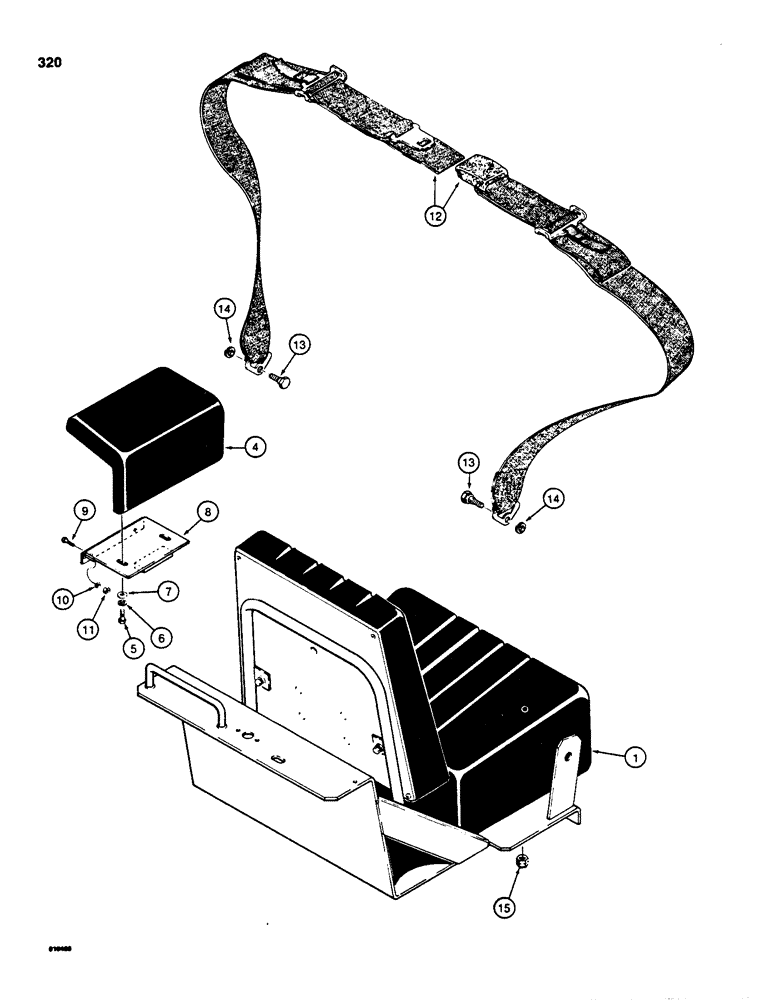

Запчасти Case 850C (320) - SEATS, ARMREST, AND SEAT BELTS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

SEAT ASSEMBLY - standard, not used on backhoe models, parts list on figure 322

1шт.

2

REF

INSTRUCTION

SUSPENSION SEAT ASSEMBLY - parts list on figures 324 and 326, not shown

1шт.

3

REF

INSTRUCTION

SEAT ASSEMBLY - used on backhoe models, parts list on figure 328, not shown

1шт.

4

R39322

CUSHION

ARMREST - seat, black, if used

2шт.

4

R48420

ARMREST

- seat, brown, if used

2шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

8

R34710

SUPPORT

PLATE - armrest mounting

2шт.

9

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

25-104

NUT,1/4"-20, G5

4шт.

12

D85816

SAFETY BELT

SEAT BELT - 3" (76mm) wide

1шт.

12

D75997

SAFETY BELT ,1.80" W

1.80" W

1шт.

13

F42236

STEP BOLT

SHOULDER BOLT - special

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC used to mount

1шт.
