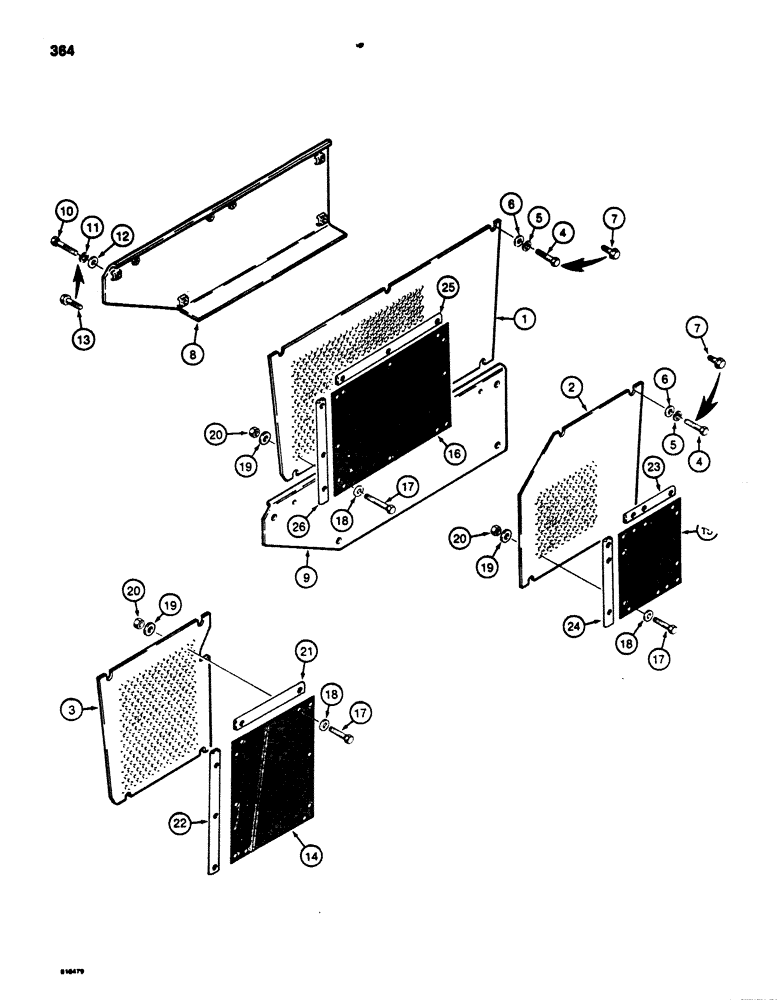

Запчасти Case 850B (364) - ENGINE SIDE SHIELDS (05) - UPPERSTRUCTURE CHASSIS

1

R32792

SHIELD

- engine side, loader models, 1" (25 mm) diameter holes, if used

2шт.

1

R42614

SHIELD

- engine side, loader models, 1/8" (3 mm) diameter holes, if used

2шт.

2

R42612

SHIELD

- engine side, front, dozer models, 1/8" (3 mm) diameter holes, if used

2шт.

3

R33532

SHIELD

- engine side, rear, dozer models, 1" (25 mm) diameter holes, if used

1шт.

3

R42613

LARGE PLATE

SHIELD - engine side, rear, dozer models, 1/8" (3 mm) diameter if used

12шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

No longer used, service with 121-428 flange bolts Hex, 1/2"-13 x 1 1/4", G5, Full Thd

16шт.

5

92-8

LOCK WASHER,1/2"

no longer used 1/2"

16шт.

6

195-33

WASHER,1/2"

- flat, , no longer used 1/2"

16шт.

7

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

16шт.

8

R32795

SHIELD - lower, left-hand

1шт.

Ref #8 has 4 square nuts that fit inside of a welded cage at each corner. nut is 224-2808.

1шт.

9

R32796

SHIELD - lower, right-hand

1шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

No longer used, service with 121-429 flange head bolts Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

11

92-8

LOCK WASHER,1/2"

no longer used 1/2"

8шт.

12

195-33

WASHER,1/2"

- flat, , no longer used 1/2"

8шт.

13

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

8шт.

14

R40309

SCREEN

- dirt, rear, dozer models, used with R33532 side shield only

2шт.

15

R41138

SCREEN

- dirt, front, dozer models, used with R33533 side shield only

2шт.

16

R41167

SCREEN

- dirt, loader models, used with R32792 side shields only

2шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

36шт.

18

95-6

WASHER,3/8"

- flat, 3/8"

36шт.

19

195-25

WASHER,3/8"

- flat, 3/8"

36шт.

20

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

36шт.

21

R40306

STRIP

RETAINER - horizontal, R40309 screen

4шт.

22

R40307

STRIP

RETAINER - vertical, R40309 screen

4шт.

23

R41136

RETAINER - horizontal, R41138 screen

4шт.

24

R41137

RETAINER - vertical, R41138 screen

4шт.

25

R40305

STRIP

RETAINER - horizontal, R41167 screen

4шт.

26

R40304

STRIP

RETAINER - vertical, R41167 screen

4шт.
