(360) - GRILLE AND RADIATOR GUARDS

Запчасти Case 850B (360) - GRILLE AND RADIATOR GUARDS (05) - UPPERSTRUCTURE CHASSIS

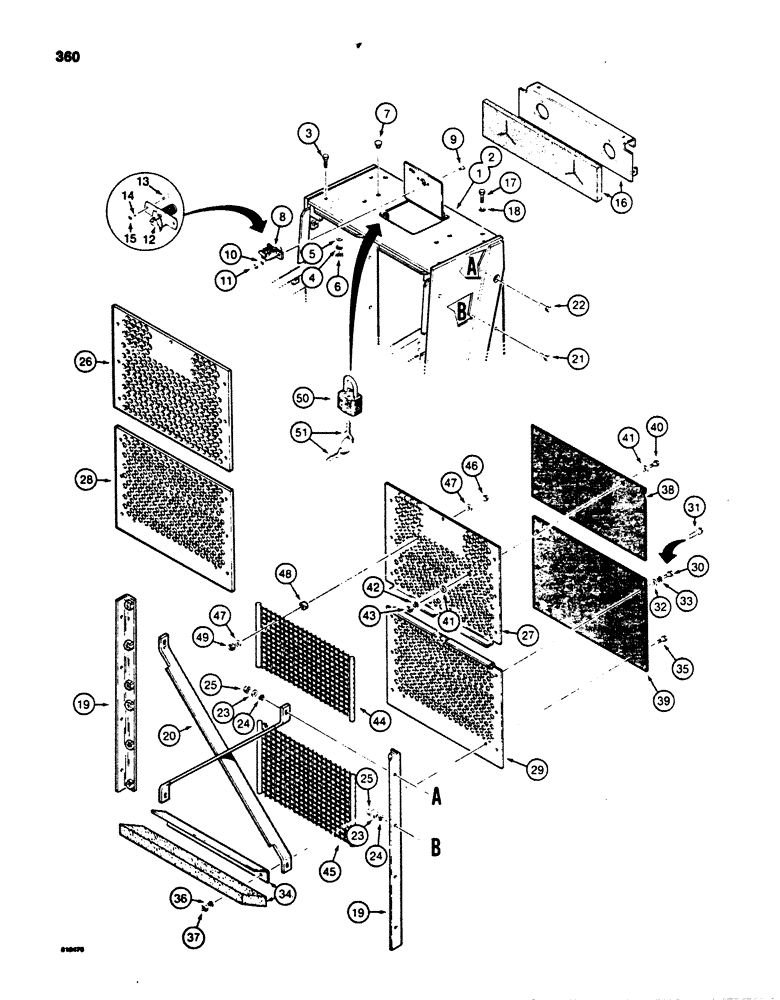

Схема запчастей Case 850B - (360) - GRILLE AND RADIATOR GUARDS (05) - UPPERSTRUCTURE CHASSIS
1
6
35
5
50
16
25
27
24
44
19
10
9
51
11
23
39
14
48
46
26
2
8
3
21
20
34
43
49
33
37
7
29
42
15
24
47
40
36
23
41
18
31
32
30
38
22
13
12
47
25
45
19
4
28
41
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

38

R33695

SCREEN - dirt, top, cannot be used with Ref. 44

1шт.

39

R35453

SCREEN - dirt, lower, cannot be used with Ref. 45

1шт.

40

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

7шт.

41

195-33

WASHER,1/2"

- flat, 1/2"

14шт.

42

92-8

LOCK WASHER,1/2"

7шт.

43

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

7шт.

44

R33698

SCREEN

- brush, upper, cannot be used with Ref. 38

1шт.

45

R33699

SCREEN

- brush, lower, cannot be used with Ref. 39

1шт.

46

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex head, 3/8" - 16 NC x 1"

12шт.

47

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, hardened

24шт.

48

R20553

WASHER

SPACER - screen

12шт.

49

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" 16 NC

12шт.

50

D93753

PADLOCK

- radiator access, includes keys, if used, Includes: Ref.#7

1шт.

51

R29555

KEY

- for Master padlock only

2шт.

51

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
