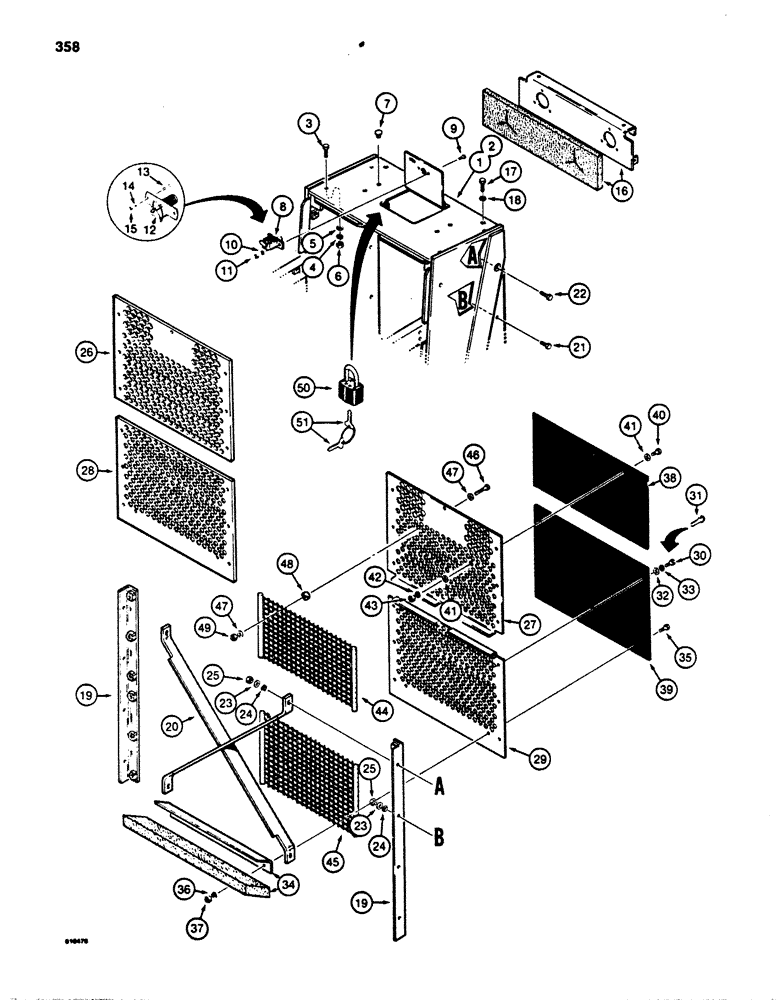

Запчасти Case 850B (358) - GRILLE AND RADIATOR GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

R32157

PLATE

- top, uses R25164 fastener, if used

1шт.

2

R45313

PLATE

- top, uses L102515 fastener, includes decals, if used

1шт.

3

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

4

92-8

LOCK WASHER,1/2"

no longer used, service with (4) R24718 hardened washers 1/2"

4шт.

5

R24718

WASHER

- flat, hardened

4шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

7

R38025

PLUG

- rubber, used when ROPS canopy is not used

4шт.

8

R25164

FASTENER

- access door, used with R32157 top plate only

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

L102515

LATCH

FASTENER - access door, used with R45313 top plate only

1шт.

13

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - no. 10 - 24 NC x 1/2"

2шт.

14

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

129-7

NUT,Hex, #10 - 24

- hex, no. 10 - 24 NC

2шт.

16

R34252

BRACKET - mounting, head lamps

1шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

R32443

SUPPORT

BRACKET - grille mounting

2шт.

20

R32156

BRACE

- radiator shroud

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

23

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

24

92-8

LOCK WASHER,1/2"

8шт.

25

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

26

R33700

GRILLE - top, heavy duty

1шт.

27

R32447

GRILLE

- top, standard

1шт.

28

R33701

GRILLE

- lower, heavy duty

1шт.

29

R32446

GRILLE

- lower, standard

1шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

No longer used, service with 121-429 flange head bolts Hex, 1/2"-13 x 1 1/2", G5, Full Thd

14шт.

31

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

14шт.

32

195-33

WASHER,1/2"

- flat, , no longer used 1/2"

14шт.

33

92-8

LOCK WASHER,1/2"

no longer used 1/2"

14шт.

34

R34251

BRACKET - lower

1шт.

35

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

36

92-8

LOCK WASHER,1/2"

2шт.

37

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.
