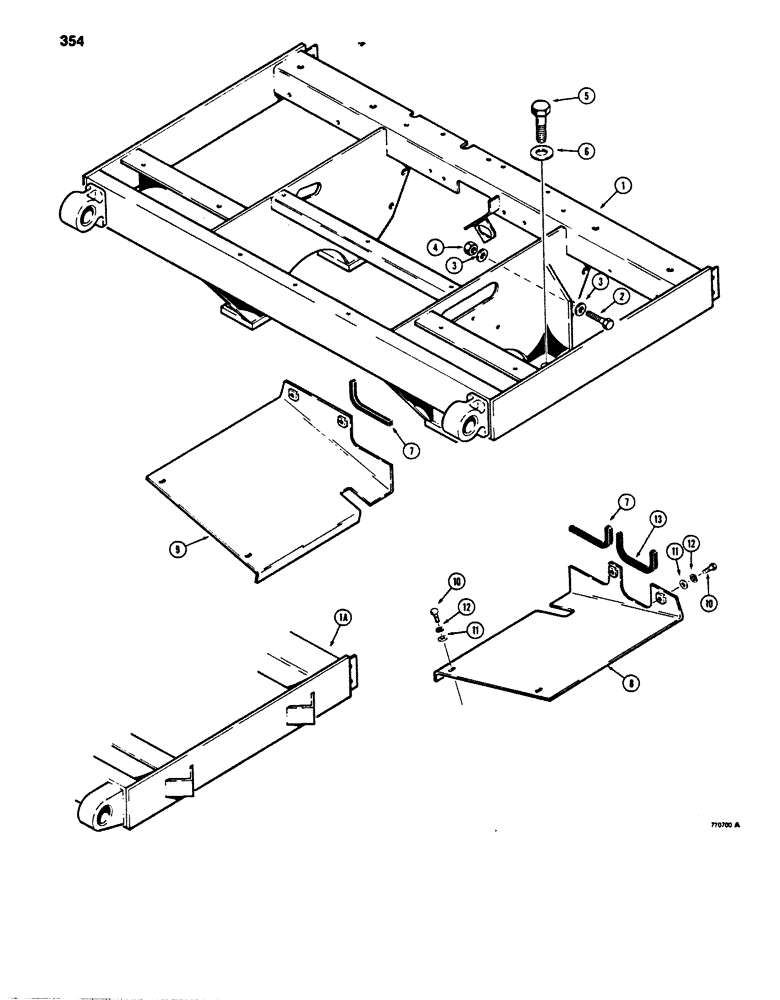

Запчасти Case 850B (354) - SEAT AND TANK FRAME (05) - UPPERSTRUCTURE CHASSIS

1

R34548

SPARE PART Dozer models

1шт.

1a

R38902

SPARE PART Loader models

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

Hardened

12шт.

4

25-1010

NUT,5/8"-11, G5

6шт.

5

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

Grade 8, use with Loctite 242 (blue)

4шт.

6

D30196

WASHER

Hardened

4шт.

7

REF

INSTRUCTION

TRIM - edge, 7" (178 mm) long, cut form D52812 bulk

2шт.

8

R34600

COVER

GUARD - hydraulic lines, RH

1шт.

9

R34554

GUARD

Hydraulic lines, LH

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

11

195-33

WASHER,1/2"

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

REF

INSTRUCTION

TRIM - edge, 5" (127 mm) long, cut from D52812 bulk

1шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.
