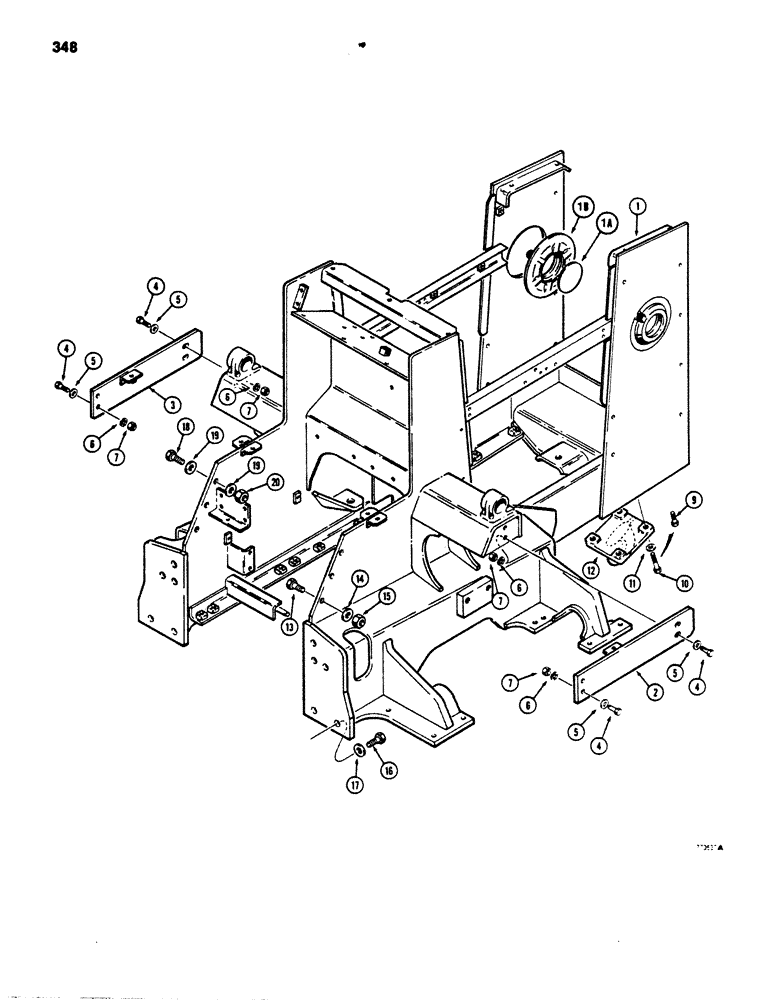

Запчасти Case 850B (348) - MAIN FRAME FOR DOZER MODELS (05) - UPPERSTRUCTURE CHASSIS

1

R41139

FRAME

MAIN FRAME - dozer models, Includes: Ref.#s1A & 1B

1шт.

1a

R31950

COVER

PLATE - trunnion race

2шт.

1b

R31951

TRUNNION

RACE - trunnion

2шт.

2

R33301

LARGE PLATE

PLATE - right-hand

1шт.

3

R33300

LARGE PLATE

PLATE - left-hand

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

5

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

6

95-8

WASHER,1/2"

- lock, 1/2"

8шт.

7

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

9

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Used without pull hook Hex, 3/4"-10 x 1 3/4", G5

4шт.

10

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex head, 3/4" - 10 NC x 2-1/2", used with pull hook

4шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

4шт.

12

71671

PLATE ASSY.

PULL HOOK - front

1шт.

13

D30593

BOLT

- special, used on backhoe models only

4шт.

14

A57033

WASHER

- special, used on backhoe models only

4шт.

15

25-1014

NUT,7/8"-9, G5

Used on backhoe models only 7/8"-9, G5

4шт.

16

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex head, 1" - 8 NC x 2-1/2", grade 8, use with Loctite 242 (blue)

10шт.

17

D30196

WASHER

- hardened

10шт.

18

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

19

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

12шт.

20

25-1010

NUT,5/8"-11, G5

6шт.
