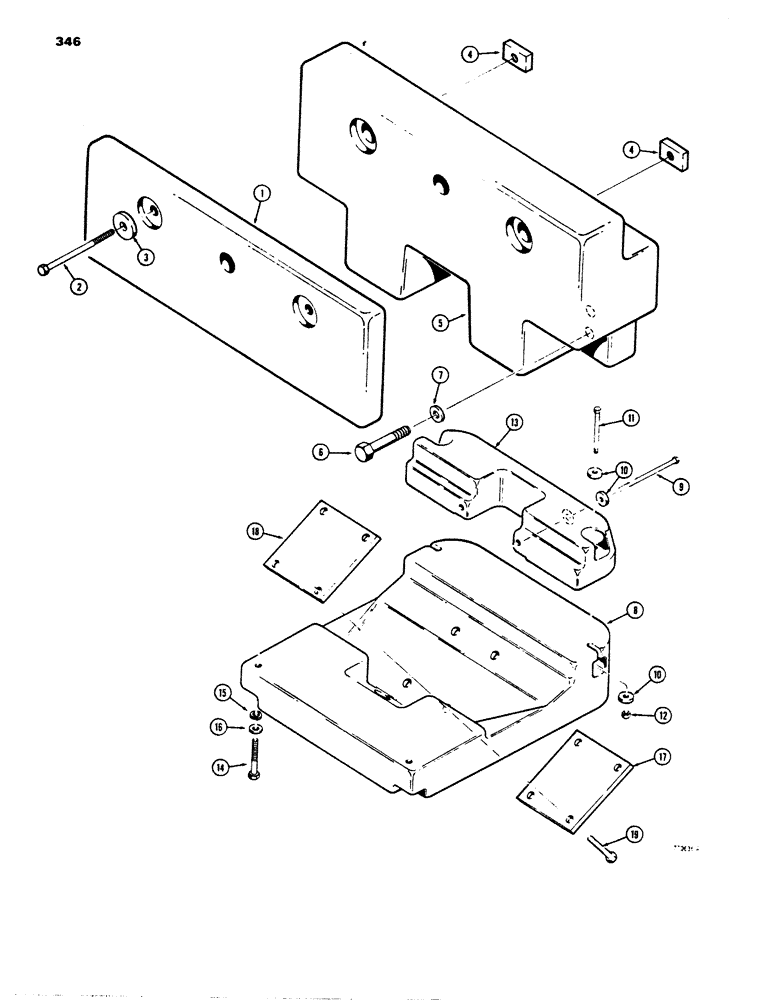

Запчасти Case 850B (346) - COUNTERWEIGHTS, NO REAR MOUNTED EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

R36174

WEIGHT

COUNTERWEIGHT - 400 lb (181 kg), no longer used, order R44645

1шт.

1

R44645

BALANCER

COUNTERWEIGHT - 400 lb (181 kg)

1шт.

2

113-784

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex head, 3/4" - 10 NC x 10"

2шт.

3

72915

GASKET

- special

2шт.

4

R36630

BLOCK

- tapped

2шт.

5

R34951

COUNTERWEIGHT - 2000 lb (907 kg)

1шт.

6

15-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

- hex head, 1" - 8 NC x 7"

4шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened, 1"

4шт.

8

R40983

WEIGHT

COUNTERWEIGHT - front, lower, pull hook

1шт.

9

13-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex head, 1/2" - 13 NC x 8", front counterweight & pull hook

2шт.

10

D26752

WASHER

- hardened, front counterweight & pull hook

6шт.

11

26-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

- hex head, 1/2" - 13 NC x 5", grade 8, front counterweight & pull hook

2шт.

12

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex, self-locking, 1/2" - 13 NC, front counterweight & pull hook

2шт.

13

R40984

BALANCER

COUNTERWEIGHT - front, upper, pull hook

1шт.

14

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- hex head, 5/8" - 11 NC x 4-1/2", front counterweight & pull hook

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Front counterweight & pull hook 5/8"

2шт.

16

195-41

WASHER,5/8"

- flat, , Front counterweight & pull hook 5/8"

2шт.

17

71671

PLATE ASSY.

PULL HOOK - front, counterweight

1шт.

18

R40986

PLATE

- used with front pull hook only, counterweight

1шт.

19

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Front counterweight & pull hook Hex, 3/4"-10 x 3 1/2", G5

4шт.
