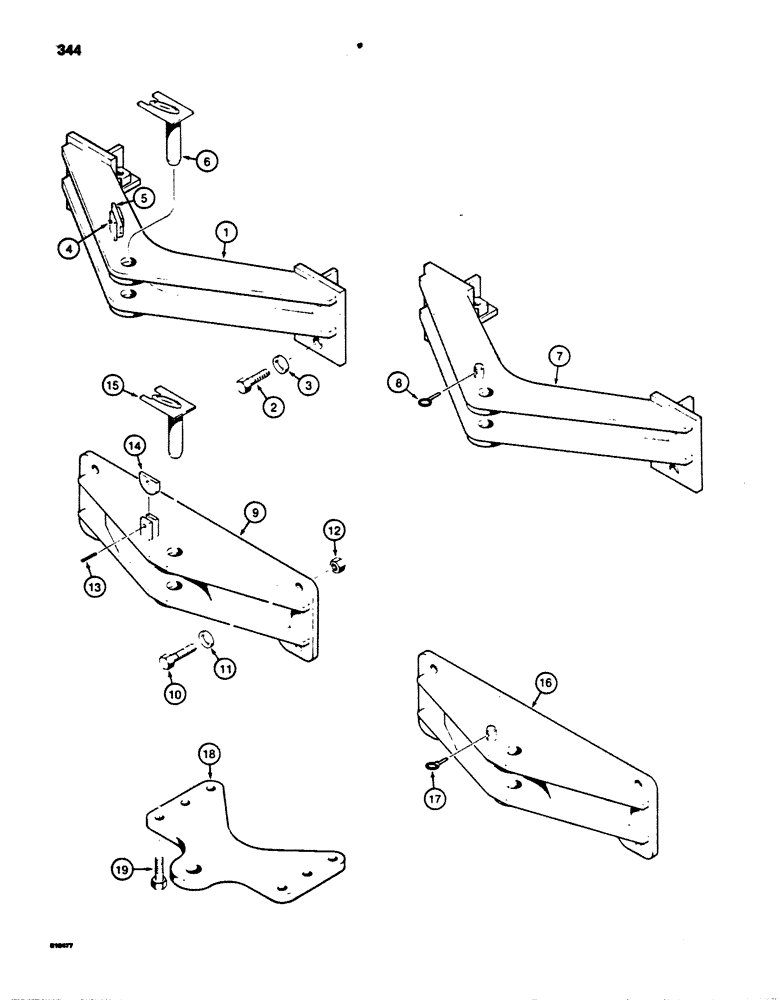

Запчасти Case 850B (344) - DRAWBARS, NO REAR EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

R33333

DRAWBAR

- pin locks with R26752 disc

1шт.

2

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

3

D30196

WASHER

- hardened

4шт.

4

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, , Used with R33333 drawbar only 5/16" x 1", Slotted

1шт.

5

R26752

DISC

- pin retaining, used with R33333 drawbar only

1шт.

6

R33340

PIN

- drawbar

1шт.

7

R43751

DRAWBAR

- pin locks with A30338 pin

1шт.

8

A30338

PIN

- self-locking, used with R43751 drawbar only

1шт.

9

R35492

DRAWBAR

- pin locks with R26752 disc, if used, ripper

1шт.

10

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Ripper Hex, 3/4"-10 x 2 1/2", G5

4шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, ripper

4шт.

12

25-1012

NUT,3/4"-10, G5

Ripper 3/4"-10, G5

4шт.

13

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, , Used with R35492 drawbar only, ripper 5/16" x 1", Slotted

1шт.

14

R26752

DISC

- pin retaining, used with R35492 drawbar only, ripper

1шт.

15

R33340

PIN

- drawbar, ripper

1шт.

16

R43752

DRAWBAR

- pin locks with A30338 pin, ripper

1шт.

17

A30338

PIN

- self-locking, used withR43752 drawbar only, ripper

1шт.

18

R37324

DRAWBAR

- used with winch

1шт.

19

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Winch Hex, 3/4"-10 x 2", G5

6шт.
