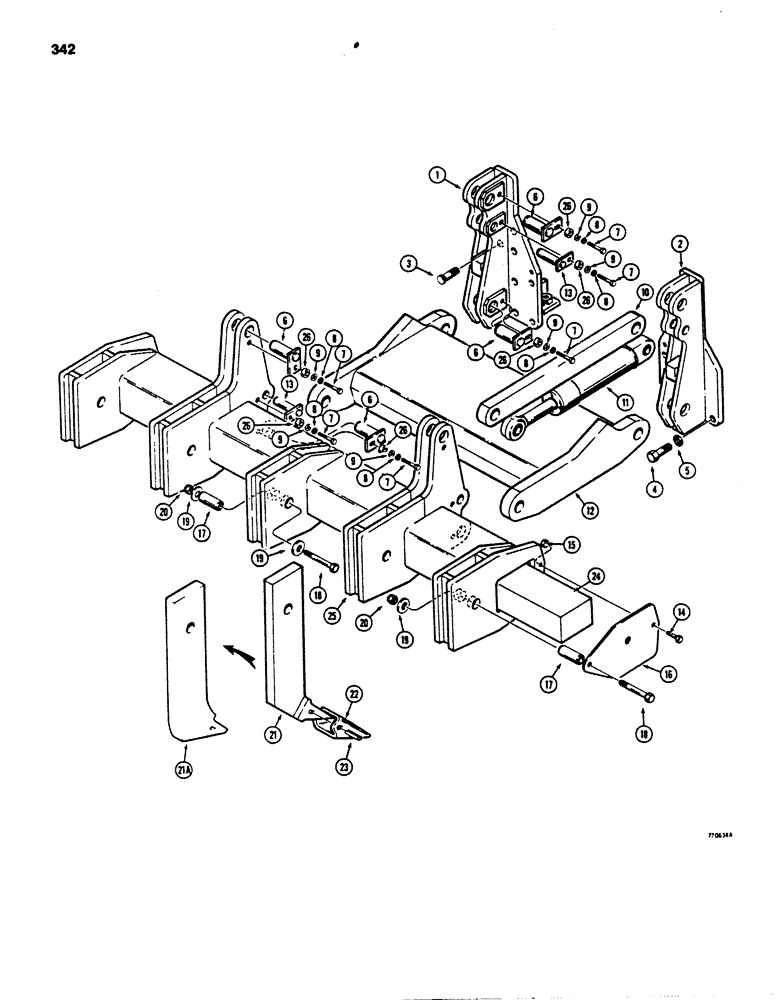

Запчасти Case 850B (342) - RIPPER (05) - UPPERSTRUCTURE CHASSIS

1

R38874

SUPPORT

BRACKET - mounting, left-hand

1шт.

2

R38875

SUPPORT

BRACKET - mounting, right-hand

1шт.

3

166-172

BOLT,12 Pt Flg, 1"-8 x 2 1/4", G8

- flanged 12 point, 1" - 8 NC x 2-1/4", grade, no longer use

2шт.

4

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex head, 1" - 8 NC x 2-1/2", grade 8

10шт.

5

D30196

WASHER

- hardened

10шт.

6

R33790

PIN

- mounting, upper arms ans lower frame, no longer used, service with R43990 pin and R43759 spacer

8шт.

6

R43990

PIN

- mounting, upper arms and lower frame

8шт.

7

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

12шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

9

195-41

WASHER,5/8"

- flat, 5/8"

12шт.

10

R33779

ARM

- upper

2шт.

11

REF

INSTRUCTION

CYLINDER - ripper, parts list Fig. 252

2шт.

12

R38877

ARM

FRAME - lower

1шт.

13

R33793

PIN

- mounting, ripper cylinder, no longer used, service with R43991 pin and R43759 spcer

4шт.

13

R43991

LARGE PIN

PIN - mounting, ripper cylinder

4шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

15

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

16

R35460

LARGE PLATE

COVER - end, shank mounting frame

2шт.

17

R33773

PIN

- shank mounting

3-5шт.

18

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- hex head, 5/8" - 11 NC x 4-1/2"

3-5шт.

19

195-44

WASHER,5/8" x 2 3/8" x .165"

- flat, 5/8"

6-8шт.

20

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

3-5шт.

21

R33980

SHANK

- tooth, no longer available, order R46112 shank

3-5шт.

21a

R46112

TOOTH

SHANK - tooth

3-5шт.

22

L55608

POINT

- tooth

3-5шт.

23

D39448

PIN

- flex

3-5шт.

24

R35459

WEIGHT

COUNTERWEIGHT - 475 lb (215 kg)

1шт.

25

R33788

BAR

FRAME - shank mounting

1шт.

26

R43759

WASHER

SPACER - pin mounting

12шт.
