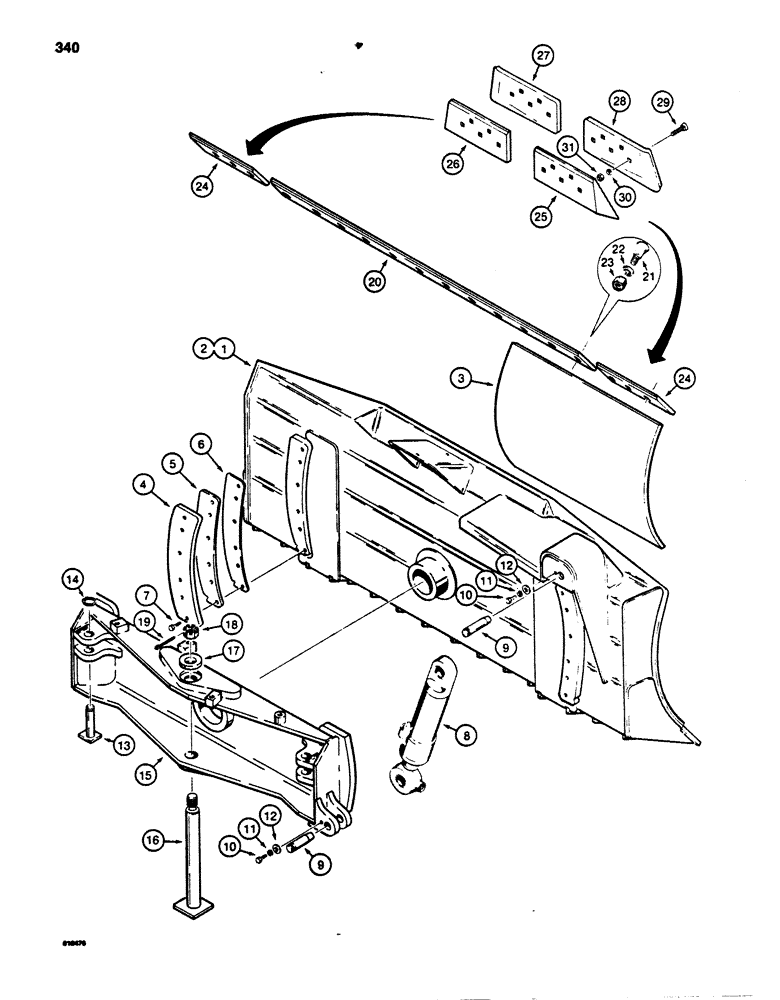

Запчасти Case 850B (340) - ANGLE TILT DOZER BLADES WITH R42554 LEVELING BEAM (05) - UPPERSTRUCTURE CHASSIS

1

R42555

BULL BLADE

BLADE - without push plate

1шт.

CENTER PIVOT IS P/N R44319 DMM

1шт.

2

R43540

BLADE

- with push plate

1шт.

3

NSS

NOT SOLD SEPARAT

PUSH PLATE - dozer blade

1шт.

4

R36266

PLATE

WEAR PLATE - blade

2шт.

5

R31646

SPACER

- wear plate

2шт.

6

R31647

SHIM,.018" Thk

1шт.

R31647 IS .016/.020" THICK

1шт.

7

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

12шт.

8

G101216

CYLINDER

- tilt, parts list Fig. 246

1шт.

9

D34796

PIN

- tilt cylinder mounting

2шт.

10

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- hardened

2шт.

13

R31965

PIN

- angle cylinder mounting

2шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

15

R42554

BEAM

LEVELING BEAM - with no bracket for cylinder hoses

1шт.

THE BIG RING WELDED ON THE BACKSIDE (IN VIEW), IS P/N: 100195A1

1шт.

16

R31968

PIN

- pivot, leveling beam

1шт.

17

R26660

WASHER,40.39mm ID x 101.6mm OD x 12mm Thk

- special

1шт.

18

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2" - 6 NC

1шт.

19

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

20

R44600

EDGE, CUTTING

CUTTING EDGE - center

1шт.

CUTTING EDGE HAS 13 HOLES

1шт.

21

118-425

PLOW BOLT,5/8"-11 x 2", G8, Full Thd

- 5/8" - 11 NC x 2", grade 8

13шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

13шт.

23

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8

13шт.

24

D48041

EDGE, CUTTING

CUTTING EDGE - ends, flat, if used

2шт.

25

D51100

EDGE, CUTTING

CUTTING EDGE - heavy duty, right-hand, if used

1шт.

26

D51101

EDGE, CUTTING

CUTTING EDGE - heavy duty, left-hand, if used

1шт.

27

R41351

EDGE, CUTTING

CUTTING EDGE - end, curved type, lef-hand, if used

1шт.

28

R41352

EDGE, CUTTING

CUTTING EDGE - end, curved type, right-hand, if used

1шт.

29

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

- 5/8" - 11 NC x 2-1/4", grade 8

4-6шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4-6шт.

31

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8

4-6шт.
