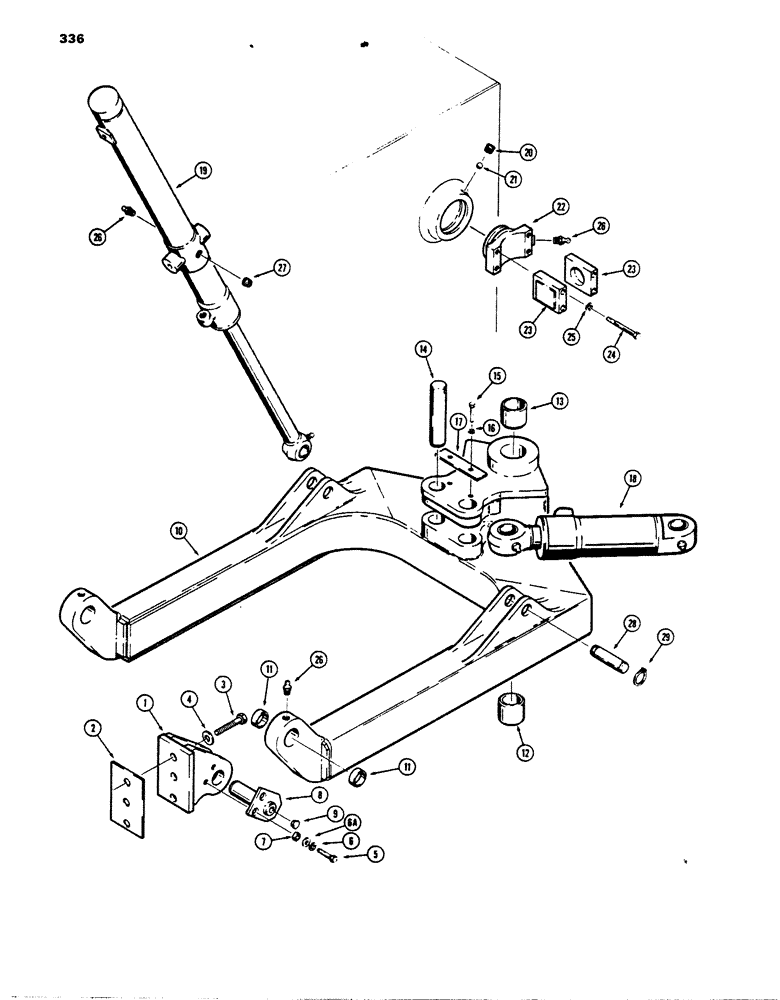

Запчасти Case 850B (336) - ANGLE TILT DOZER C-FRAME (05) - UPPERSTRUCTURE CHASSIS

1

R36276

WELDABLE LUG

BRACKET - lug, if used

2шт.

This lug bracket is used on earlier units. Later units had the bracket welded onto the mainframe. The welded bracket then became an NSS item. This NSS item was furnished under P/N R41118, which is a part of R41115 and R41116 L.H. and R.H. gusset/weldments. These gussets were part of the R41139 mainframe weldment.

1шт.

2

R35227

SHIM

- if used

1шт.

3

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

6шт.

5

113-2449

LOCK BOLT,Locking, 1/2"-13 x 1 3/4", G8

BOLT, Locking, 1/2"-13 x 1 3/4", G8

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

6a

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

7

R39697

BUSHING

- pin

4шт.

8

R39700

PIN

- mounting, C-frame to main frame

2шт.

9

353-9

PLUG,Cap, .512" OD

- plastic

2шт.

10

R32014

FRAME

C-FRAME - angle tilt dozer, Includes: Ref.#s11 - 13

1шт.

11

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- C-frame ends

4шт.

12

R27011

BUSHING,63.75mm ID x 76.2mm OD x 63.5mm L

- front, lower

1шт.

13

R31914

BUSHING,63.75mm ID x 76.2mm OD x 53.34mm L

- front, upper

1шт.

14

R31966

AXLE PIN

PIN - mounting, angle, Serial Range: cylinders-C-frame

2шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

R31891

LARGE PLATE

PLATE - pin retaining

1шт.

18

G35480

CYLINDER

- angle, used on models with R36794 leveling beam, parts list Fig. 248

2шт.

For identification of leveling beams, see Fig. 338 & 340.

1шт.

18a

G103467

CYLINDER ASSY.

CYLINDER - angle, used on models with R42554 leveling beam, parts list Fig. 250

2шт.

For identification of leveling beams, see Fig. 338 & 340.

1шт.

19

G101217

CYLINDER

- lift, parts list Fig. 240

2шт.

20

R32031

PLUG

- lift trunnion

2шт.

21

211-17

BALL,3/4" Dia

- steel, 3/4" (19 mm) diameter

38шт.

22

R31982

TRUNNION

BRACKET - pivot, lift cylinder

2шт.

Weldment that Ref. 22 goes into is P/N R48191.

1шт.

23

R31981

BLOCK

- cylinder retaining

4шт.

24

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex head, 1/2" - 13 NC x 3-1/2", grade 8

8шт.

25

92-8

LOCK WASHER,1/2"

8шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

27

221-849

PLUG,Hex Soc, 1/8"-27

- square socket, 1/4" NPT

2шт.

28

D51045

PIN,38.1mm OD x 111.25mm L

- mounting, lift, Serial Range: cylinder-C-frame

2шт.

29

D25279

SNAP RING,M35, Int

- pin

4шт.
