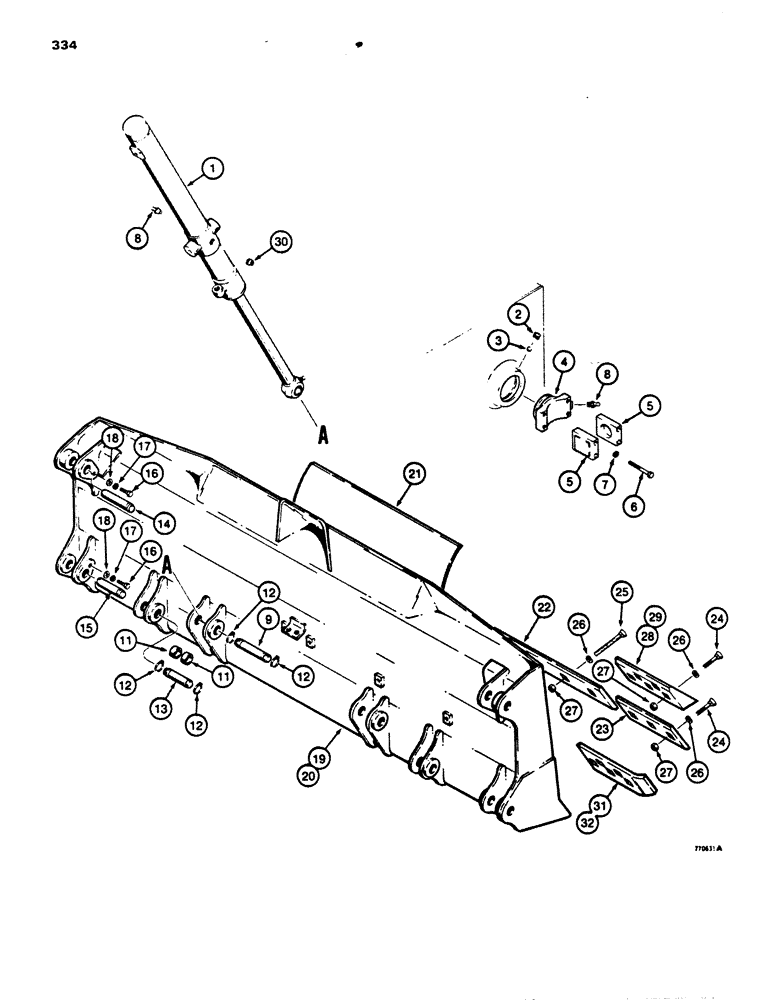

Запчасти Case 850B (334) - TILT DOZER BLADE (05) - UPPERSTRUCTURE CHASSIS

1

G101218

CYLINDER

- lift, parts list Fig. 242

2шт.

2

R32031

PLUG

- lift trunnion

2шт.

3

211-17

BALL,3/4" Dia

- steel, 3/4" (19 mm) diameter

38шт.

4

R31982

TRUNNION

BRACKET - pivot, lift cylinder

2шт.

5

R31981

BLOCK

- cylinder retaining

4шт.

6

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex head, 1/2" - 13 NC x 3-1/2", grade 8

8шт.

7

92-8

LOCK WASHER,1/2"

8шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

9

D32931

PIN

- mounting, lift, Serial Range: cylinder-blade

2шт.

11

R33693

SPACER

- pin

4шт.

12

D25279

SNAP RING,M35, Int

- pin

8шт.

13

D37604

PIN

- mounting, push beams to blade, inner

2шт.

14

R33101

PIN

- mounting, cylinder or, Serial Range: strut-blade

2шт.

15

R33100

PIN

- mounting, push beams to blade, outer

2шт.

16

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, 1/4" (6 mm) thick

4шт.

19

R33076

BLADE - dozer, without push-plte

1шт.

20

R32488

BLADE - dozer, with push plate, Includes: Ref.#21

1шт.

21

R32083

PUSH PLATE - dozer blade

1шт.

22

R44592

EDGE

CUTTING EDGE - blade, center (Subs R32561)THIS IS A 12 HOLE CUTTING EDGE.

1шт.

23

R26567

BLADE

CUTTING EDGE - ends, standard

2шт.

24

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

- 5/8" - 11 NC x 2-1/4", grade 8

6шт.

25

19-1032

BOLT,5/8" - 11 x 2", Gr 5

PLOW BOLT - 5/8" - 11 NC x 5

12шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

27

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8

18шт.

28

R31854

EDGE, CUTTING

CUTTING EDGE - heavy duty, left-hand (With 5 Bolt Holes)

1шт.

29

R31855

EDGE, CUTTING

CUTTING EDGE - heavy duty, right-hand (With 5 Bolt Holes)

1шт.

30

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

- 5/8" - 11 NC x 2-1/4", grade 8

4шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

32

129-563

NUT,5/8"-11, G8

- hex, 5/8' - 11 NC, grade 8

4шт.

33

221-849

PLUG,Hex Soc, 1/8"-27

- square socket, 1/4" NPT

2шт.

34

R42508

END ASSY.

CUTTING EDGE - end, curved type, left-hand

2шт.

35

R42509

END ASSY.

CUTTING EDGE - end, curved type, right-hand

2шт.
