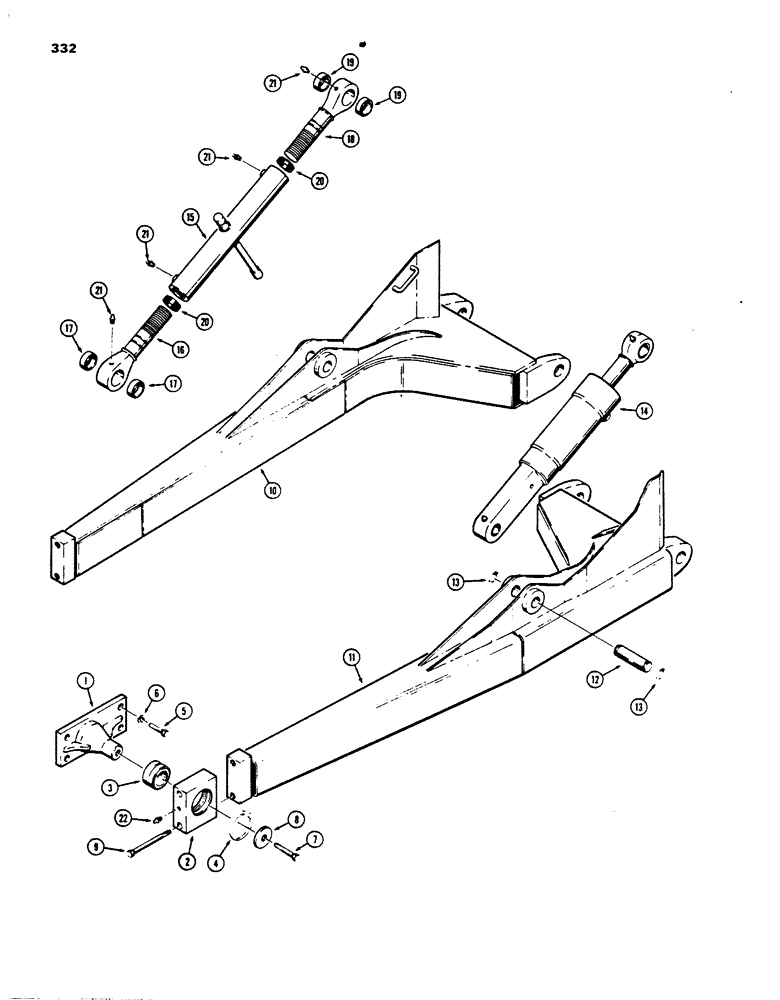

Запчасти Case 850B (332) - TILT DOZER PUSH BEAMS (05) - UPPERSTRUCTURE CHASSIS

R34580

TRUNNION

ASSEMBLY - push beam, Includes: Ref.#s1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

TRUNNION - push beam

1шт.

R33104

BLOCK ASSEMBLY - pivot, Includes: Ref.#s2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - pivot

1шт.

3

D23601

HOUSING

BUSHING - self-aligning

1шт.

4

49477

RING, SNAP

3.156", Int, #315, bushing

1шт.

5

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

8шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 3/4" - 10 NC x 1-3/4", grade 8

2шт.

8

R32619

WASHER

- hardened

2шт.

9

26-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

- hex head, 3/4" - 10 NC x 6-1/2", grade 8

4шт.

10

R32984

PUSH BEAM - left-hand

1шт.

11

R32985

PUSH BEAM - right-hand

1шт.

12

R32565

PIN

- mounting, cylinder or strut to push beams

2шт.

13

D25279

SNAP RING,M35, Int

- pin

4шт.

14

G101219

CYLINDER

- tilt, parts list Fig. 244

1шт.

R39094

STRUT

ASSEMBLY - left-hand push beam, Includes: Ref.#s15 - 21

1шт.

15

NSS

NOT SOLD SEPARAT

STRUT - left-hand push beam

1шт.

16

R39092

ROD

EYE - lower, strut

1шт.

17

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- eye

2шт.

18

R39093

ROD

EYE - upper, strut

1шт.

19

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- eye

2шт.

20

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - strut

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.
