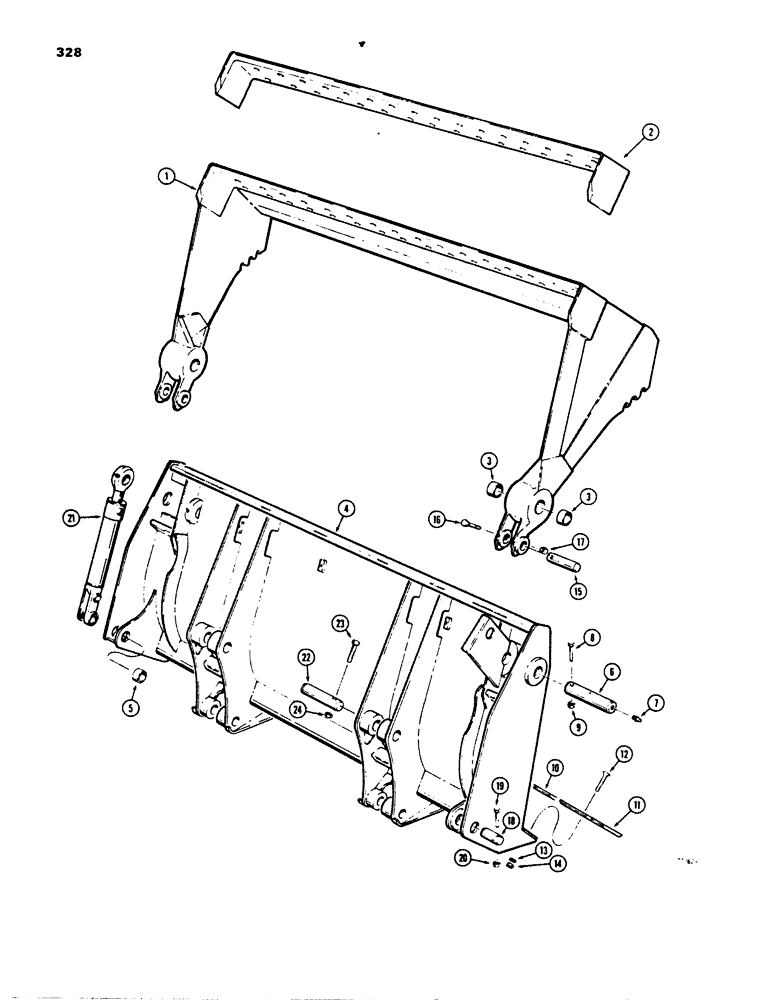

Запчасти Case 850B (328) - LOADER CLAM BUCKETS (05) - UPPERSTRUCTURE CHASSIS

R35421

BUCKET ASSEMBLY - with hydraulic lines, machinery item,. see Fig. 2 for ordering, Includes: P/N R34462

1шт.

R34462

BUCKET ASSEMBLY - machinery item, see Figure 2 for ordering, Includes: Ref.#1 - 20

1шт.

BUCKET ASSY HAS A WEAR PLATE P/N FOR THAT PLATE IS R34435.

1шт.

1

R34432

CLAW

CLAM ASSEMBLY - bucket, Includes: Ref.#s2 & 3

1шт.

2

R32005

EDGE

CUTTING EDGE - clam

1шт.

3

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- clam pivot

4шт.

4

R34364

BLADE

- clam bucket, Includes: Ref.#5

1шт.

5

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- blade ear

2шт.

6

D51874

PIN,50.8mm OD x 217.17mm L

- pivot, Serial Range: clam-blade

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

8

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex head, 3/8" - 16 NC x 4-1/2"

2шт.

9

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

10

R34393

BLADE

CUTTING EDGE - center

1шт.

11

D50492

BLADE

CUTTING EDGE - ends

2шт.

12

19-1236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 5

PLOW BOLT - 3/4" - 10 NC x 2-1/4"

14шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

14шт.

14

25-1012

NUT,3/4"-10, G5

14шт.

15

D50435

PIN,38.1mm OD x 124.46mm L

- cylinder mounting, upper

2шт.

16

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

17

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

18

D51244

AXLE PIN,38.1mm OD x 99.06mm L

PIN - cylinder mounting, lower

2шт.

19

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

20

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

21

REF

INSTRUCTION

CYLINDER - clam bucket, parts list Fig. 238

2шт.

22

R32151

PIN

- mounting, clam bucket to lift frame and dump links

4шт.

23

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- hex head, 3/8" - 11 NC x 4-3/4"

4шт.

24

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 3/8" - 11 NC

4шт.
