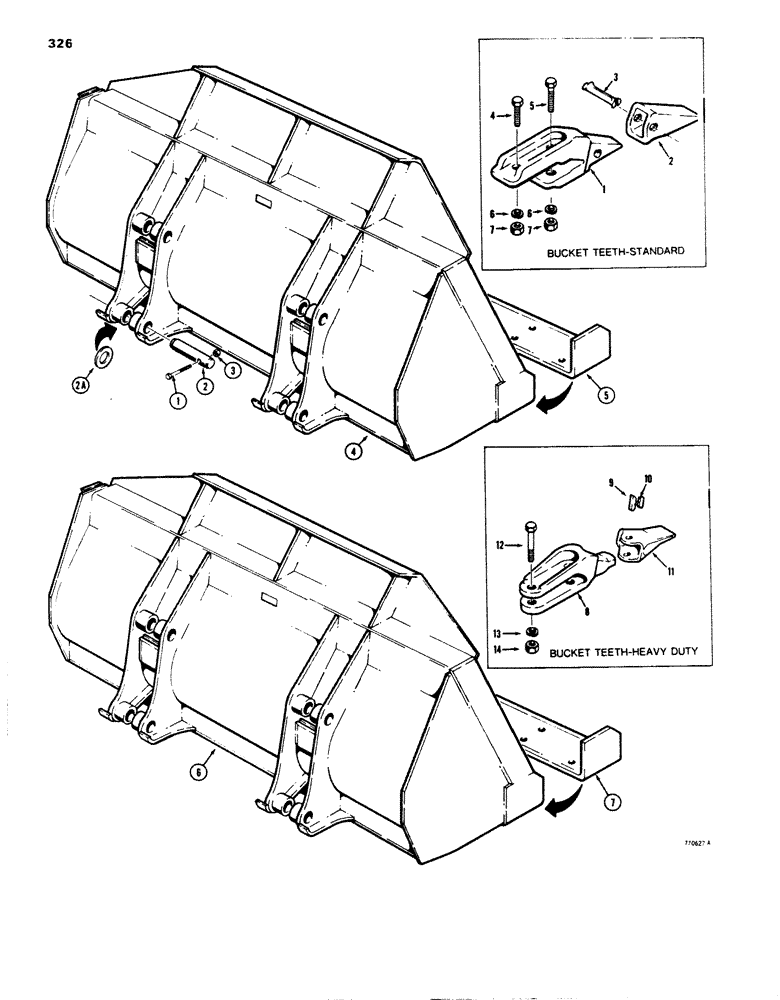

Запчасти Case 850B (326) - LOADER BUCKETS (05) - UPPERSTRUCTURE CHASSIS

1

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- hex head, 5/8" - 11 NC x 4-3/4"

4шт.

2

R32151

PIN

- mounting, bucket

4шт.

2a

D37449

SHIM,.0747" Thk

WASHER - spacer, if required

1шт.

3

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

4шт.

R31987

BUCKET ASSEMBLY - 1-1/2 cu yd (1.1 cu metre), machinery item, see Fig. 2 for ordering, Includes: Ref.#s4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

5

R32005

EDGE

CUTTING EDGE - bucket

1шт.

R36475

BUCKET ASSEMBLY - 1-3/8 cu yd (1 cu metre), machinery item, see Fig. 2 for ordering, Includes: Ref.#s6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

7

R32005

EDGE

CUTTING EDGE - bucket

1шт.

R33528

TOOTH

ASSEMBLY - standard, Includes: Ref.#s1 - 3

8шт.

1

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

2

L55608

POINT

- tooth, bucket

1шт.

3

D39448

PIN

- flex, bucket teeth

1шт.

4

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8" - 11 NC x 2-1/2", grade 8, bucket teeth

8шт.

5

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- hex head, 5/8" - 11 NC x 3-1/4", grade 8, bucket teeth

8шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth 5/8"

16шт.

7

25-1010

NUT,5/8"-11, G5

Bucket teeth 5/8"-11, G5

16шт.

R35316

TOOTH

ASSEMBLY - heavy duty, bucket, Includes: Ref.#s8 - 10

8шт.

8

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

9

R35318

PIN

- tooth, bucket

1шт.

10

R35319

LOCK ASSY

LOCK - pin, bucket teeth

1шт.

11

R38572

TOOTH

POINT - tooth, bucket

1шт.

12

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex head, 5/8" - 11 NC x 2-3/4", grade 8, bucket teeth

16шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth 5/8"

16шт.

14

129-107

NUT,5/8"-11, G5

(Revised 25-1010), bucket teeth 5/8"-11, G5

16шт.
