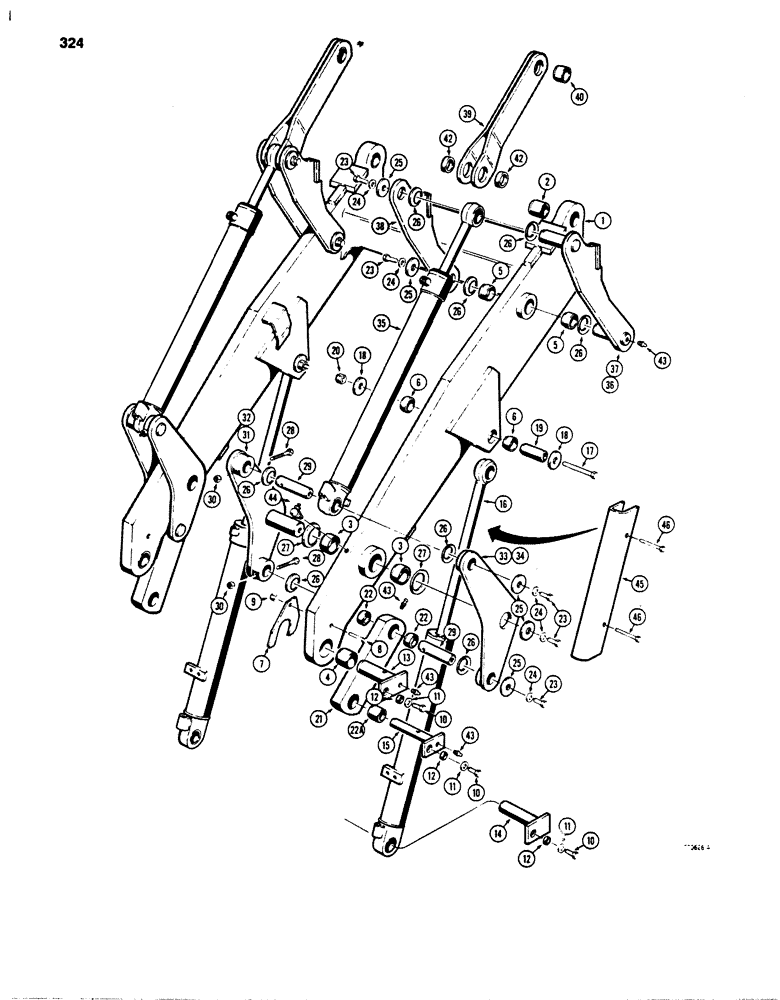

Запчасти Case 850B (324) - LOADER LIFT FRAME (05) - UPPERSTRUCTURE CHASSIS

1

R34354

ARM/LIFTING DEVICE

FRAME - lift, Includes: Ref.#s2 - 6

1шт.

2

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- at bucket

2шт.

3

R37396

BUSHING

- at bucket cylinder link

4шт.

4

R31718

BUSHING

- lift frame, Serial Range: mounting-tractor

2шт.

5

R37397

BUSHING

- at bucket links

4шт.

6

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- lift cylinder mounting

4шт.

7

R40703

SHIM

- .075" (1.9 mm) thick

1шт.

7

R40704

SHIM

- .141" (3.58 mm) thick

1шт.

7

R40705

SHIM

- .172" (4.37 mm) thick

1шт.

8

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

9

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

10

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 2", G5

6шт.

11

D31328

WASHER

- hardened

6шт.

12

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

- pin mounting

6шт.

13

R32852

PIN

- mounting, lift, Serial Range: frame-tractor

2шт.

14

R32858

PIN

- mounting, lift, Serial Range: cylinder-tractor

2шт.

15

R40132

AXLE PIN

PIN - mounting, links

2шт.

16

REF

INSTRUCTION

CYLINDER - lift, parts list Fig. 234

2шт.

17

13-1284

CAPSCREW,Hex, 3/4" - 10 x 5 1/4", Gr 5

BOLT - hex head, 3/4" - 10 NC x 5-1/4"

2шт.

18

R40509

WASHER

- hardened

4шт.

19

R33048

PIN

- mounting, lift cylinder to lift frame

2шт.

20

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

21

R34343

DRAG LINK

LINK - leveling, Includes: Ref.#s22 & 22A

2шт.

22

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- link, short

2шт.

22a

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- link, long

1шт.

23

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 2", G5

10шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, if used

10шт.

25

R40509

WASHER

- special

10шт.

26

R36578

SPRING

BELLEVILLE SPRING - 2" (51 mm) ID

16шт.

27

R36577

WASHER,107.95mm OD x 1.828mm Thk

- 2-1/2" (64 mm) ID

4шт.

28

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

4шт.

29

R40507

AXLE PIN

PIN - mounting, bucket cylinder links

4шт.

30

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

31

R40502

DRAG LINK

LINK - bucket cylinder, left-hand inner

1шт.

32

R40501

DRAG LINK

LINK - bucket cylinder, right-hand inner

1шт.

33

R34346

DRAG LINK

LINK - bucket cylinder, left-hand outer

1шт.

34

R34347

DRAG LINK

LINK - bucket cylinder, right-hand outer

1шт.

35

REF

INSTRUCTION

CYLINDER - bucket, parts list Fig. 236

2шт.

36

R40503

LINK

- dump, right-hand outer

1шт.

37

R40504

LINK

- dump, left-hand outer

1шт.

38

R38088

LINK

- dump, inner

2шт.

39

R38077

LINK

- dump, upper, Includes: Ref.#s40 - 42

2шт.

40

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- upper dump link, long

1шт.

42

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- upper dump link, short

2шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

8шт.

44

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

45

R38905

STAY

STRUT - loader frame

1шт.

46

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4"

2шт.
