(352) - UNDERCARRIAGE GUARDS

Запчасти Case 850B (352) - UNDERCARRIAGE GUARDS (04) - UNDERCARRIAGE

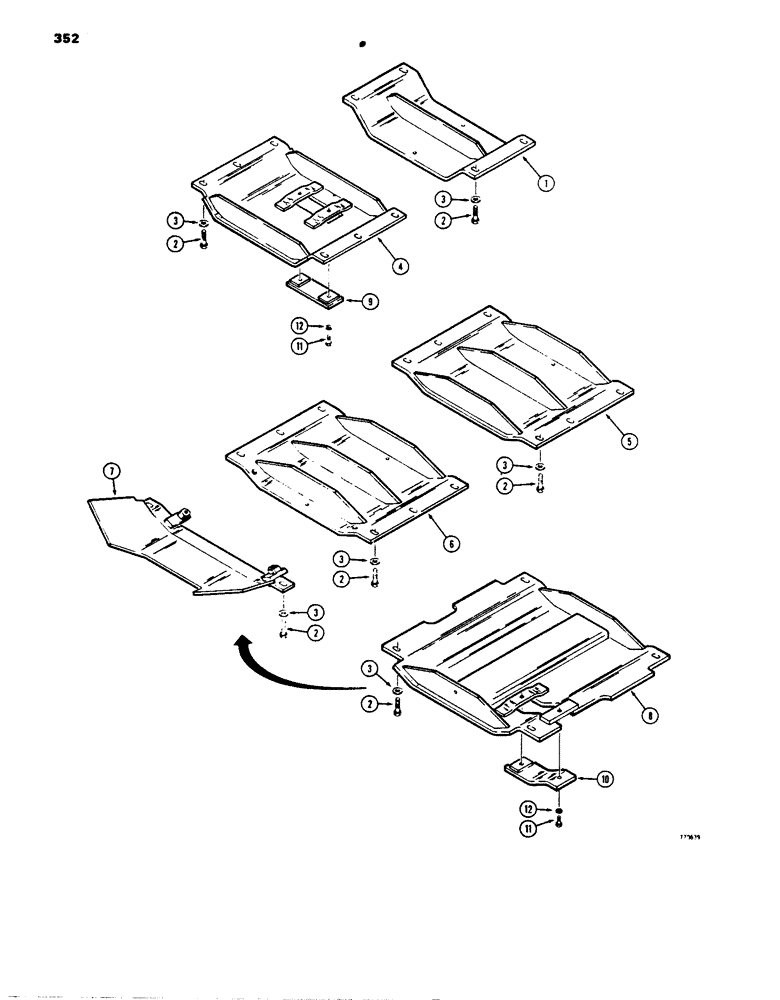

Схема запчастей Case 850B - (352) - UNDERCARRIAGE GUARDS (04) - UNDERCARRIAGE
1
4
3
12
11
3
12
2
3
3
2
2
9
5
6
3
2
1
8
2
3
10
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R31272

GUARD

- engine, front

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

26шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

26шт.

4

R31271

GUARD ASSY.

GUARD - oil pan

1шт.

5

R31581

GUARD

- drive train, front

1шт.

6

R31580

GUARD

- drive train, rear

1шт.

7

R36235

GUARD

- transmission, rear, used without ripper, winch or drawbar

1шт.

8

R33350

LARGE PLATE

GUARD - transmission, rear, used with ripper, winch or drawbar

1шт.

9

R26886

PLATE

- oil drain, engine

1шт.

10

R33343

COVER

PLATE - oil drain, transmission

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2-4шт.

12

92-6

LOCK WASHER,3/8"

2-4шт.
