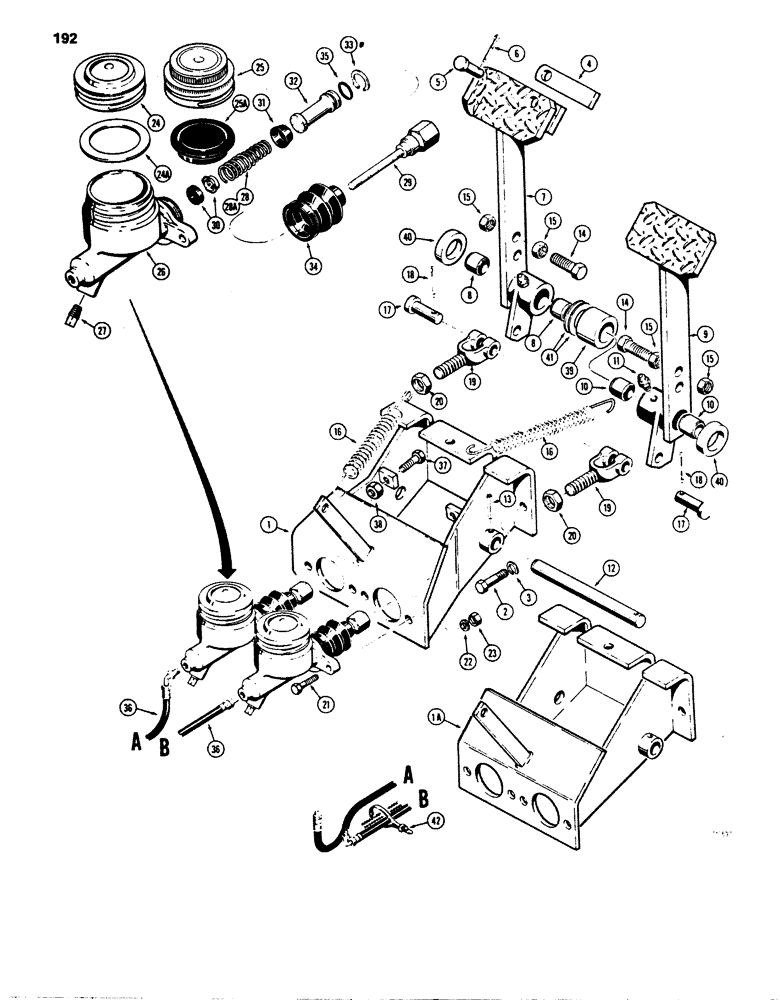

Запчасти Case 850B (192) - POWER BRAKES (04) - UNDERCARRIAGE

1

R32457

BRACKET

FRAME - use R40780 frame, (2) bolts and (2) 25-106 nuts

1шт.

1

R40780

BRACKET

FRAME - no longer used, service with R43440 brake frame

1шт.

1a

R43440

BRACKET

FRAME - brake pedals and master cylinders

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

D42840

LOCK

BAR - lock

1шт.

5

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

6

132-26

COTTER PIN

- Split (Cotter), 3/32" x 3/4"

1шт.

7

D48604

PEDAL ASSY.

PEDAL - left-hand, Includes: Ref.#8

1шт.

8

R29752

BUSHING

- left-hand pedal

2шт.

9

D48605

BRAKE ASSY.

PEDAL - right-hand, Includes: Ref.#10

1шт.

10

R29752

BUSHING

- right-hand pedal

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

12

R32456

SHAFT

- pedals

1шт.

13

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

15

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

4шт.

16

R33370

SPRING

- brake

2шт.

17

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16"

2шт.

18

132-26

COTTER PIN

- Split (Cotter), 3/32" x 3/4"

2шт.

19

D38620

YOKE

CLEVIS - master cylinder

2шт.

20

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex, jam, 7/16"- 20 NF

2шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

D39824

CYLINDER

MASTER CYLINDER - brake, with rounded cap and flat gasket, no longer used, service with R43758 master cylinder

2шт.

R55671

MASTER CYLINDER

- brake, with flat cap an formed gasket(Subs R43758), Includes: Ref.#24 - 35

2шт.

24

D42448

CAP

- filler, rounded, D39824 master cylinder only, Includes: Ref.#24A

1шт.

24a

NSS

NOT SOLD SEPARAT

GASKET - cap, flat, D39824 master cylinder only

1шт.

25

N6574

FILLER CAP

CAP - filler, flat, R43758 master cylinder only, Includes: Ref.#25A

1шт.

25a

NSS

NOT SOLD SEPARAT

GASKET - formed, R43758 master cylinder only

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

27

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

28

D42444

SPRING

- D39824 master cylinder

1шт.

28a

NSS

NOT SOLD SEPARAT

SPRING - R43758 master cylinder

1шт.

29

D42446

ROD

- actuating

1шт.

D42442

REPAIR KIT

KIT - repair, Includes: Ref.#30 - 35

1шт.

30

NSS

NOT SOLD SEPARAT

VALVE AND SEAT - master cylinder

1шт.

31

NSS

NOT SOLD SEPARAT

CAP - rubber, master cylinder

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

33

NSS

NOT SOLD SEPARAT

RETAINING RING - piston

1шт.

34

D42443

BOOT

- brake actuating rod

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

36

D39836

HOSE,3.17mm ID x 609.6mm L

- brake

2шт.

37

113-242

BOLT

BOLT - hex head, 3/8" - 16 NC x 1-1/4"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

39

R32454

SPACER

- between pedals

1шт.

40

R32455

SPACER

- pedals, outer

2шт.

41

D35268

SHIM,1/32" Thk

Pedals 1/32" Thk

1шт.

42

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - brake hose

1шт.
