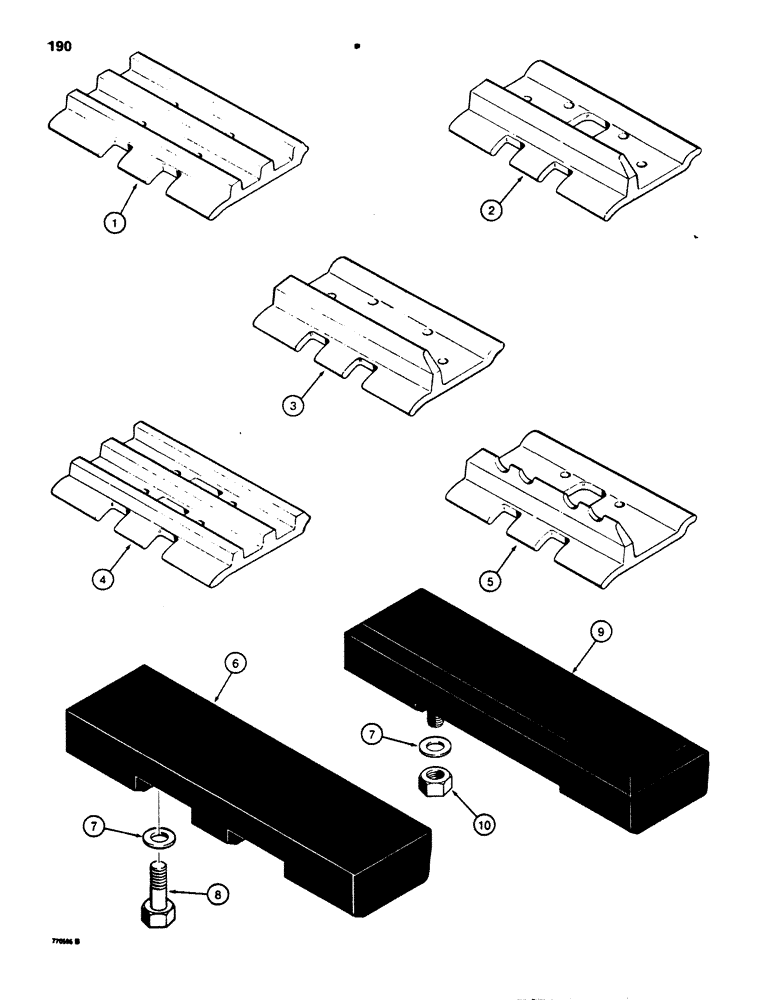

Запчасти Case 850B (190) - TRACK SHOES, TRIPLE GROUSER - CLOSED (04) - UNDERCARRIAGE

1

R25976

SHOE

TRACK SHOE - 14" (356 mm) loader models

76шт.

1

R25978

TRACK SHOE

- 15" (381 mm) loader models

76шт.

2

R25950

TRACK SHOE

- 16" (406 mm) dozer and drawbar models, semi grouser open center

76шт.

2

R25951

TRACK SHOE

- 17" (432 mm) dozer and drawbar models, semi grouser open center

76шт.

2

R225955

TRACK SHOE - 18" (457 mm) dozer and drawbar models, semi grouser open center

76шт.

3

R25934

TRACK SHOE

- 16" (406MM) dozer and drawbar models, single grouser closed

76шт.

3

R25935

TRACK SHOE

- 17" (432mm) dozer and drawbar models, single grouser closed

76шт.

3

R25937

TRACK SHOE

- 18" (457mm) dozer and drawbar models, single grouser closed

76шт.

3

R25938

TRACK SHOE

- 20" (508mm) dozer and drawbar models, single grouser closed

76шт.

4

R25994

TRACK SHOE

- 14" (356 mm) loader models, triple grouser open center

76шт.

4

R25995

SHOE

TRACK SHOE - 15" (381 mm) loader models, triple grouser open center

76шт.

5

R25959

TRACK SHOE

- 15" (381 mm) dozer and drawbar models, single grouser ice

76шт.

6

R38862

SHOE

PAD - rubber, without studs, no longer used, service with R43447 pad and 25-1010 nuts, track shoe

76шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, used with both rubber pads, track shoe

152шт.

8

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Used with R38862 pad only, rubber track shoe Hex, 5/8"-11 x 1 1/2", G5, Full Thd

152шт.

9

R43447

SHOE

PAD - rubber, with studs, track shoe

76шт.

10

25-1010

NUT,5/8"-11, G5

Used with R43447 pad, rubber track shoe 5/8"-11, G5

152шт.
