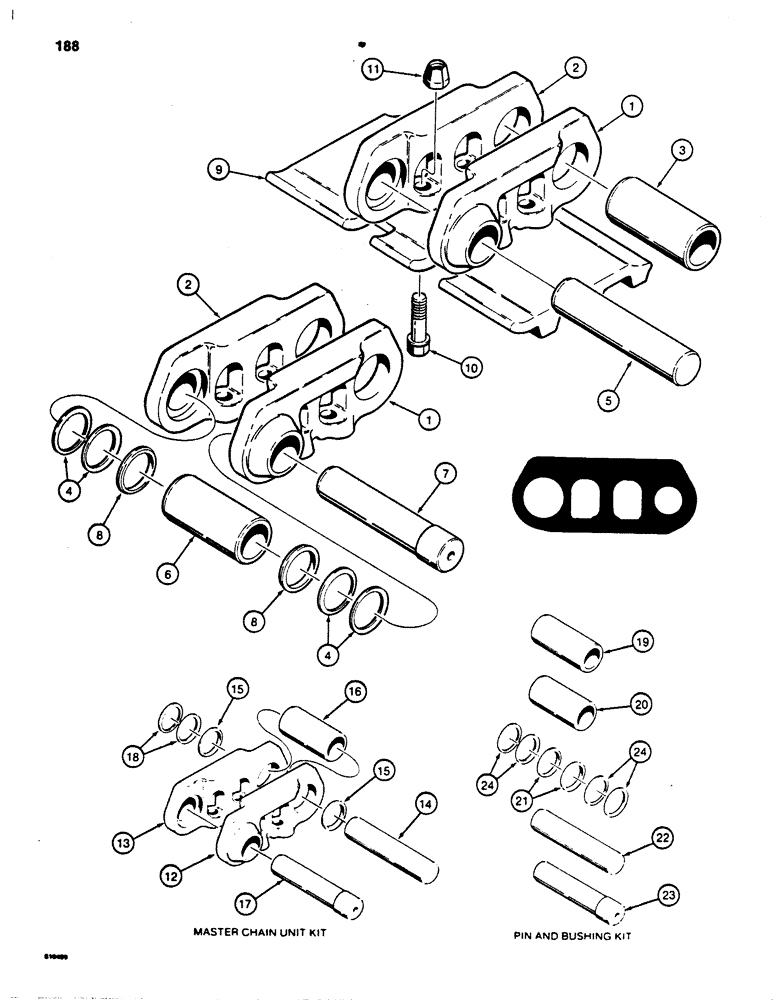

Запчасти Case 850B (188) - R41054 TRACK CHAIN (04) - UNDERCARRIAGE

R43164

CHAIN (AG)

CHAIN ASSEMBLY - track, 20 unit

2шт.

R43162

CHAIN (AG)

CHAIN ASSEMBLY - track, 18 unit, Includes: Ref.#1 - 8

2шт.

1

R41053

LINK

- track, right-hand

20шт.

2

R41052

LINK

- track, left-hand

20шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long

19шт.

4

D45076

BELLEVILLE SPRING

- pin mounting

80шт.

5

R14893

PIN,34.9mm OD x 176.22mm L

- standard

19шт.

5

D32164

PIN

- service option, .003 oversize (0.076 mm)

19шт.

6

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

7

D36511

PIN

- master

1шт.

7

D43541

PIN

- master, service option, .003" oversize (0.076 mm)

1шт.

8

D45272

BUSHING

- spacer

2шт.

9

REF

INSTRUCTION

TRACK SHOE - see Fig. 191 for options

76шт.

10

D48004

FLANGE BOLT

BOLT - special

304шт.

11

R17415

LOCK NUT

- lock, special

304шт.

R43165

LINK

KIT- master chain unit, Includes: Ref.#12 - 18

4шт.

12

R41053

LINK

- track, right-hand, master chain unit kit

1шт.

13

R41052

LINK

- track, left-hand, master chain unit kit

1шт.

14

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, master chain unit kit

1шт.

15

D45272

BUSHING

- spacer, master chain unit kit

2шт.

16

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, chain unit kit

1шт.

17

D36511

PIN

- master chain unit kit

1шт.

18

D45076

BELLEVILLE SPRING

- pin mounting, master chain unit kit

8шт.

D45349

KIT

- pin and bushing, Includes: Ref.#19 - 24

1шт.

19

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long, pin kit

76шт.

20

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, pin kit

4шт.

21

D45272

BUSHING

- spacer, pin kit

8шт.

22

D32164

PIN

- service option, .003" oversize (0.076 mm), bushing kit

76шт.

23

D43541

PIN

- master, .003" oversize (0.076 mm), bushing kit

4шт.

24

D45076

BELLEVILLE SPRING

- pin mounting, bushing kit

320шт.
