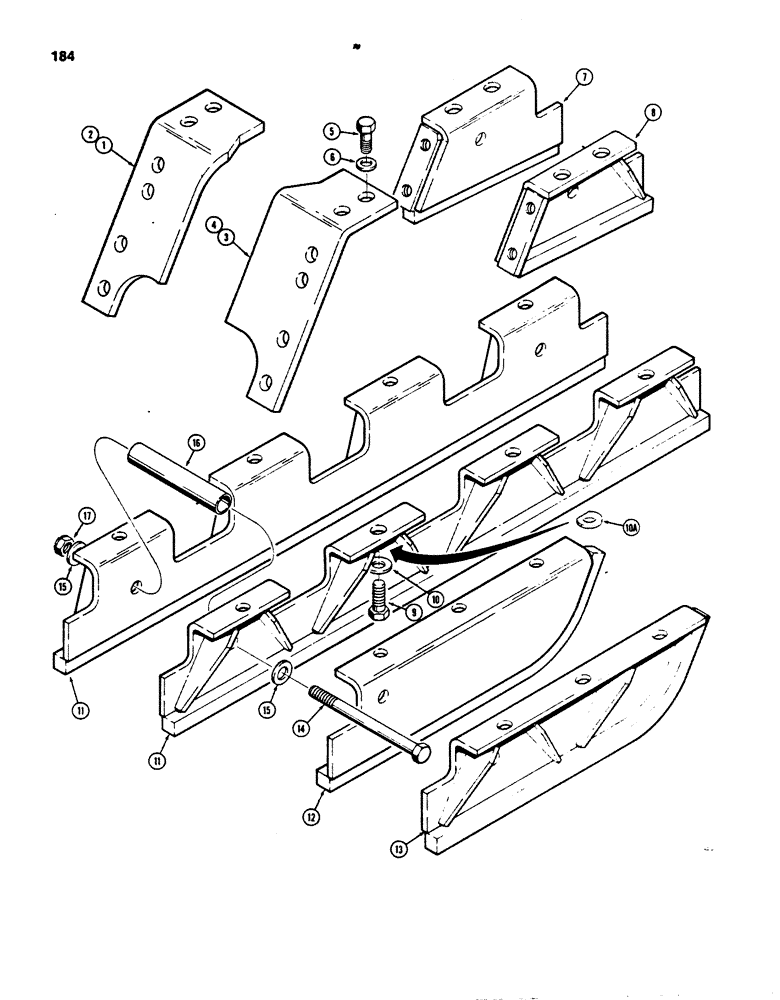

Запчасти Case 850B (184) - TRACK GUIDES (04) - UNDERCARRIAGE

1

R32710

COVER

- end, left-hand inner

1шт.

2

R32711

COVER

- end, right-hand inner

1шт.

3

R32702

COVER

- end, left-hand outer

1шт.

4

R32703

COVER

- end, right-hand outer

1шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Use with Loctite 242 (blue) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

24шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

24шт.

7

R32656

GUARD

TRACK GUIDE - left-hand rear

2шт.

8

R32657

GUARD

TRACK GUIDE - right-hand rear

2шт.

9

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Used with Loctite 242 (blue) Hex, 3/4"-10 x 1 1/2", G5

36шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, no longer used, service with R43769

36шт.

10a

R43769

WASHER

- special, hardened

36шт.

11

R32658

GUARD

TRACK GUIDE - center

4шт.

12

R32654

GUARD

TRACK GUIDE - left-hand front

2шт.

13

R32655

GUARD

TRACK GUIDE - right-hand front

2шт.

14

13-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

- hex head, 3/4" - 10 NC x 9-1/2"

8шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

16шт.

16

R32644

BUSHING

SPACER - track guides

8шт.

17

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

8шт.
